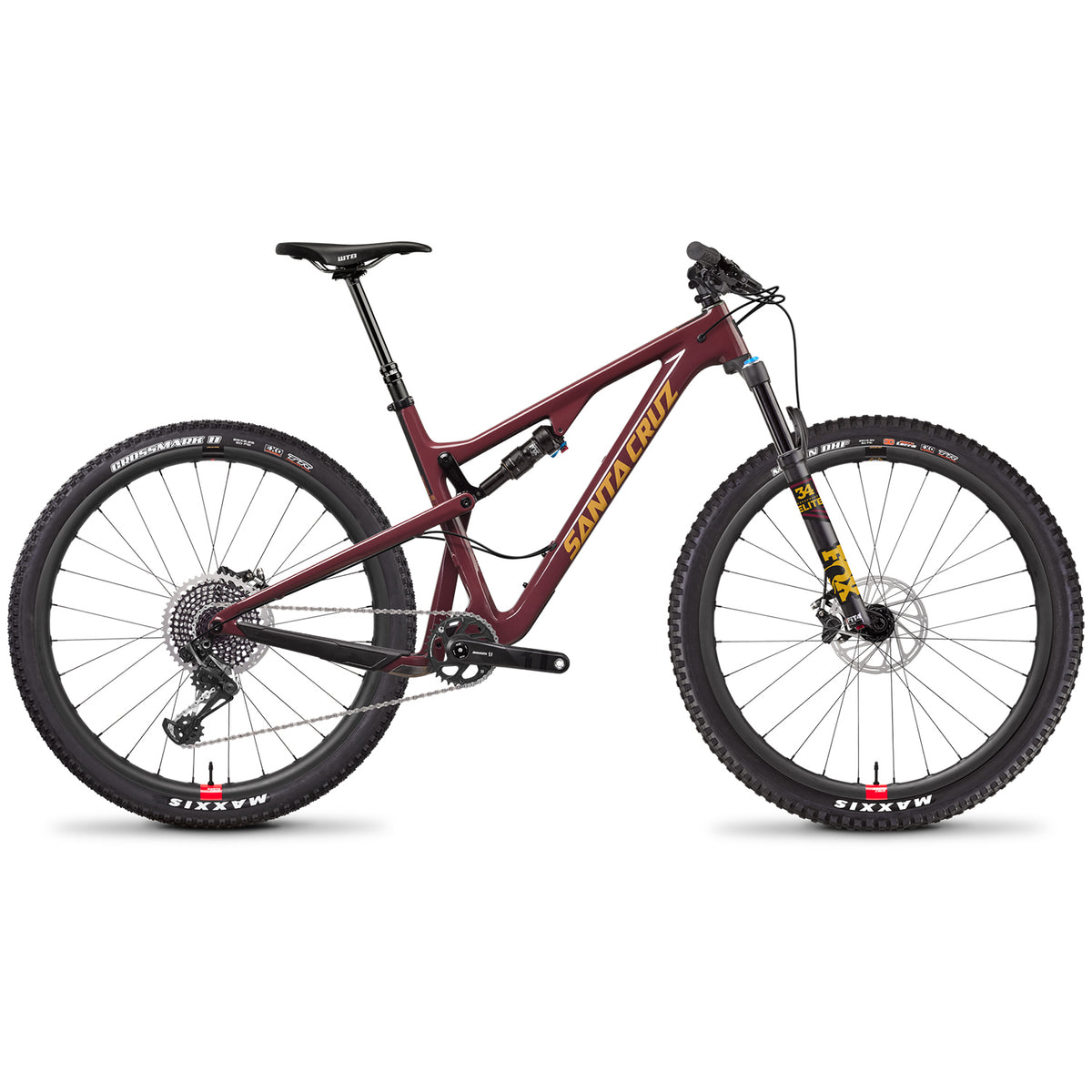

Santa Cruz Bicycles Tallboy CC X01 Reserve Complete Mountain Bike 2019
SKU# EB-150753-1001
$5,599.30
$7,999.00
Find in Store
Checking availability...
Not available in store
Order and get 5599 reward points
Earn 5599 points with this product. Join Free
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsSanta Cruz Bicycles Tallboy CC X01 Reserve Complete Mountain Bike 2019
One look at a current World Cup XC track and you'll see: XC ain't what it used to be. The Santa Cruz Bicycles Tallboy CC X01 Reserve Complete Mountain Bike is a short travel bike that's racer-fast, but with enough juice to rail berms and stick mid-size drops with confidence. Made with refined CC carbon, it's a lightweight trail bike that'll climb with the spandex crowd for hours, but won't have you tucking tail and whimpering on the way down: it rips descents too! With a SRAM X01 Eagle™ drivetrain and Santa Cruz's famous VPP® suspension design, this is a 110mm bike that's built for slaying all but the harshest of trails.
Product Details
Frame/Shock:
Carbon CC Frame: Santa Cruz's highest grade CC-level carbon frame is every bit as stiff and strong as their C-level frame, but weighs about 280 grams less, due to the use of lighter, stronger, and more expensive carbon fiber. Santa Cruz is also able to truly integrate the shock mounts, pivot mounts, dropouts and disc brake tabs into the structure, using all uni-directional carbon plies. The shock mount isn't merely riveted or bonded on after curing, but is an integrated part of the fiber lay-up. This makes Santa Cruz's carbon frames incredibly strong and able to absorb impact better than any other frame they've tested.
110mm VPP® Suspension: VPP is based on the patented principle of having two short links rotating in opposite directions. This system provides huge design flexibility, allowing Santa Cruz to manipulate shock rates to the intended purpose and character of each model; from short travel endurance bikes to World Championship winning DH machines.
Fox Float Performance Elite DPS: For a lightweight, inline shock, the DPS packs a lot of performance. The Dual Piston Base Valve has dedicated compression and rebound pistons, providing a firm lockout without compromising bump compliance, ride control, or efficiency. Performance Elite Float DPS shocks retain the same adjustments, dampers, weight, and 7000 series aluminum as Factory Series, but have s black anodized finish instead of Genuine Kashima Coat. A Performance Elite graphics package is found on these forks to tie in the black-on-black look.
Shock Adjustments: Lever Actuated Open, Medium, Firm Modes | Open Mode Adjust Tuning Range (1, 2, 3) | Rebound | Air Spring Pressure
Internal Carbon Tubes: Ensure precise and hassle-free routing of derailleur and seat post cables.
Bottle Cage Mount: Within the front triangle, fits piggyback shocks.
Integrated Headset
148mm Rear Axle Spacing
Forged Upper and Lower Links
Internal Brake and Dropper Cable Routing
Convertible Between 29 and 27.5+ Wheels
ISCG-05 Tabs for Chainguide Compatibility
Double Sealed Pivots for Long Bearing Life
Angular Contact Bearings Maximize Stiffness
Recessed Lower Link Protected from Rock Strikes
Collet Axle Pivots Lock In Place Without Pinch Bolts
Molded Rubber Swingarm and Downtube Protection
Fork:
Fox 34 Float Performance Elite: Performance Elite forks retain the same adjustments, dampers, weight, and 7000 series aluminum upper tubes as Factory Series, but have black anodized upper tubes instead of Genuine Kashima Coat. A Performance Elite graphics package is found on these forks to tie in the black-on-black look.
Fork Adjustments: FIT4 3-Position Lever Adjust (Open, Medium, Firm), Open Mode Adjust (22 Clicks), Rebound, Air Spring Pressure
Drive Train:
SRAM X01 Eagle™: The X01 Eagle™ drivetrain signals an exciting new era of freedom and the next level of uncompromising performance for enduro racers and aggressive trail riders. Watching the world’s best racers use their parts to battle against nature, physics and time itself, has inspired SRAM to supply them with the most advanced tools we can develop. X01 Eagle™ takes everything you love about SRAM's pioneering 1x drivetrains and increases its wear life, toughness, precision, smooth and silent operation. Add to that the 10- to 50-tooth, 12-speed, Eagle™ cassette, and you have a range of gears that gives you the freedom to enjoy the benefit of 1x in any terrain, any location and at any speed. X01 Eagle™ is drivetrain freedom—how you exploit it is up to you.
Brakes:
SRAM Level TLM Brakeset: It has a championship-winning pedigree, and is ready to take all of the punishment you want to give it. Level TLM puts proven SRAM braking performance and consistency at your fingertips, in a sleek, lightweight design optimized specifically for cross-country and light trail use. Power and modulation are delivered via the Level TLM’s alloy lever blade, DirectLink™ actuation, DOT 5.1 fluid and new two-piston, monoblock caliper. The design provides superior heat management for consistent, fade-free performance all day long, and BLEEDING EDGE™ technology makes maintenance incredibly simple, so your brakes feel great all day — every day.
Avid CenterLine Rotors: The new CenterLine Rotor was designed to keep the center of friction consistent throughout rotation thereby minimizing vibration offering consistent performance and a quiet ride.
Wheelset:
Maxxis Minion DHF Front Tire: The Minion DHF was designed for the often loose and muddy conditions of aggressive all-mountain terrain. The DHF incorporates ramped knobs for low rolling resistance and channel-cut knobs to increase gripping edges, giving straight-line control and precise cornering.
Maxxis Crossmark II | Rear Tire: The Crossmark II improves on the speed of its predecessor while improving grip in intermediate conditions. The tightly packed knobs on the center ridge still fly on hardpack, and the updated tread pattern provides better braking and cornering over a wide range of trail conditions. A great choice if you want to go fast everywhere.
Santa Cruz Reserve Carbon Wheels: Whether it's a sunset lap with friends or a race run against the clock, a broken wheel ruins any ride. SC set strength and impact resistance as their highest priority, but strength doesn't have to mean uncomfortably stiff. Their wheels are compliant enough to avoid that harsh "wooden" ride that gives some carbon rims a bad name offroad. Santa Cruz only makes offroad bikes, so they have the privilege of being able to focus purely on the mountain bike experience. Everything from the thickness of rim beads to external spoke hole reinforcements comes purely from their experience of knowing what riders need at every level—from international racing to your local trails.
Additional Features:
RockShox Reverb Stealth Dropper Seatpost: Don’t let its familiar good looks fool you—Reverb is a whole new weapon. Its internals have been completely re-engineered to improve on its already legendary performance and to offer enhanced reliability: all the smallest details, down to the single seal, have been re-evaluated and updated to pass the hardest and longest durability tests. Additional bushing overlap also improves performance over time. This is the brand-new Reverb, engineered for the next-generation mountain biker.
Shipping Information:
Oversize Item: Ships within the continental U.S. for $69. HI and AK shipping available. Please call for details.
Specs
Used For:
Cross Country,
Trail
Fork Travel:
120mm
Rear Travel:
110mm
Handlebar:
SCB XC Carbon Flat
Biking Type:
Mountain
Frame Material:
Carbon
Gearing:
1 x 12
Water Bottle Mounts:
1
Stanchion Diameter:
34mm
Rear Shock:
Fox Float DPS Performance Elite
Shifters:
SRAM X01 Eagle
Rear Derailleur:
SRAM X01 Eagle, 12-Speed
Crankset:
SRAM X1 Carbon DUB, 32t
Cassette:
SRAM X01 Eagle XG-1295, 10-50t
Chain:
SRAM X01 Eagle, 12-Speed
Bottom Bracket:
73mm BSA Threaded
Brake Levers:
SRAM Level TLM
Brake Calipers:
SRAM Level TLM
Rotors:
Avid Centerline 180mm
Headset:
Cane Creek 40 Intergrated
Bar Tape/Grips:
Santa Cruz Palmdale Grips
Stem:
Easton Haven 55mm
Saddle:
WTB Silverado Team Saddle
Seatpost:
RockShox Reverb Stealth Dropper
Wheelset:
Santa Cruz Reserve
Hubs:
DT Swiss 350 15x110 28h Front / DT Swiss 350 148x12 28h XD Rear
Spokes:
DT Competition (28)
Front Tire:
Maxxis Minion DHF 2.3" | 3C, EXO, TR
Rear Tire:
Maxxis Crossmark II 2.25" | Dual, EXO, TR
Warranty:
Limited Lifetime (Frame and Bearings Only)
Wheel Size:
29"
