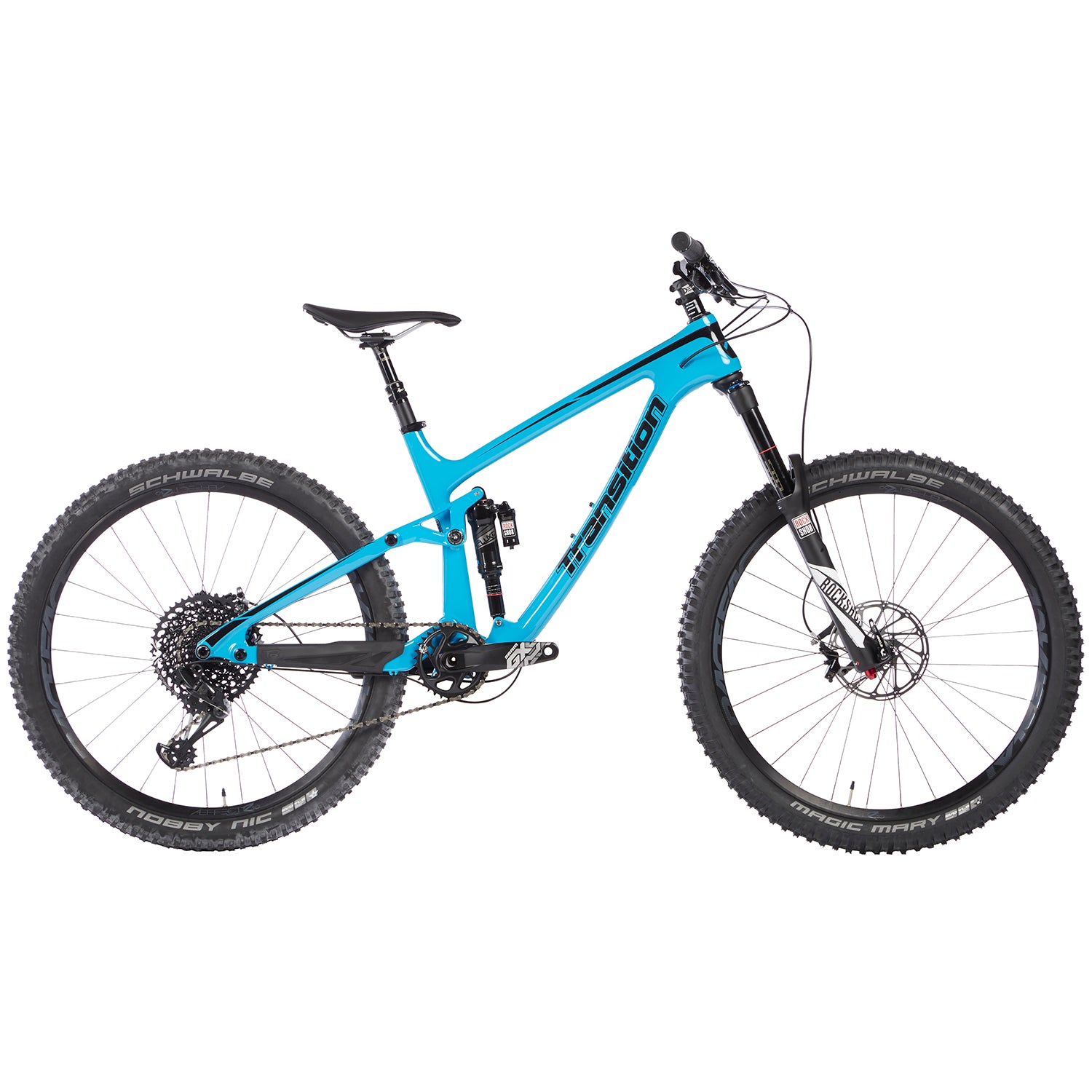

Transition Patrol Carbon GX evo Complete Mountain Bike 2017
SKU# EB-135236-1001
$3,999.97
$5,800.00
Find in Store
Checking availability...
Not available in store
Order and get 4000 reward points
Earn 4000 points with this product. Join Free
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsTransition Patrol Carbon GX evo Complete Mountain Bike 2017
Kitted out with a hefty 160mm RockShox Lyrik RCT3 fork and all-new Super Deluxe RC3 shock in back, the Transition Patrol Carbon GX evo Complete Mountain Bike and its Giddy Up suspension eats uphill climbs for breakfast and smashes through chunky rock gardens for dinner. A lightweight and rigid carbon frame lends itself to ultimate trail feel while the simplified 1x12 SRAM GX Eagle™ drivetrain makes gear changes smooth and silky. A two-time recipient of Dirt Magazine's Dirt 100 award and Pinkbike's 2016 Bike Of The Year honors, the highly capable, ride-anything, go-anywhere Transition Patrol Carbon GX evo Complete Mountain Bike is the perfect machine to accommodate the diverse needs of modern riders, and is available exclusively from evo.
Product Details
Frame/Shock:
Carbon Frame
Progressive Geometry: Long, low and slack.
Giddy Up Suspension System: When Transition set out to design the new family of trail bikes, they wanted to improve their suspension bike pedaling performance, but didn't want to lose the neutral and comfortable feel that Transition Bikes are known for. No one at Transition wanted a suspension system that felt like it was locking out, or provided any "kick back" in the pedals. Their Giddy Up link is specifically tuned with a moderate amount of chain growth which is highest at the sag point and decreasing deeper into the travel. Because of this finely tuned wheel path, the new models have a notable increase in traction when climbing, without the rider noticing the chain growth fighting the suspension movement. The ride feel of Giddy Up Link bikes will be familiar for any previous Transition rider, but with a big improvement in suspension performance. Their new models are designed to be active while climbing; increased compression damping or rear shock platforms are not required with the Giddy Up link. The suspension remains free to smooth out the trail, improve traction and control without sacrificing any efficiency. There is no need to think about flipping switches; start your ride with the shock open and leave it there. With Giddy Up you can focus on the trail, not your remotes, levers or knobs. Just grab your bike, Giddy Up and go.

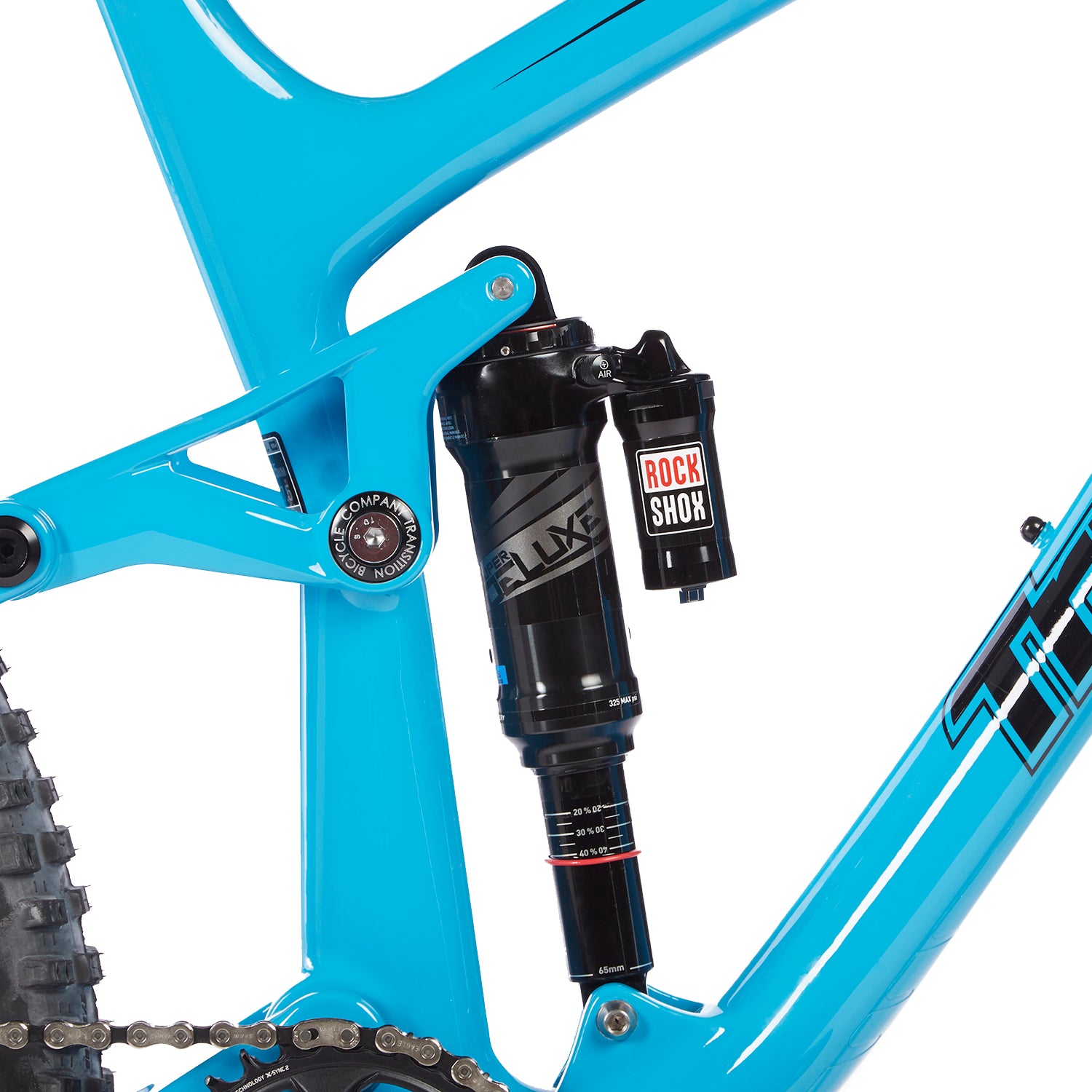

RockShox Super Deluxe RC3: The directive was simple. Engineer a shock that does for rear-suspension performance what Pike did for forks. Simple? Don’t bet on it. A gamble? Absolutely. It required a complete change in the way RockShox approaches shock design. It meant focusing on performance first and leaving old constraints behind. And it gave RockShox a clear path to develop the world’s lowest-friction shock — Super Deluxe. Metric sizing gives Super Deluxe significantly increased bushing overlap, which, together with a sophisticated new bushing profile, virtually eliminates friction in the shock. A new damper holds the shock high in its stroke and offers unparalleled traction. Unshackled from the old obstacles of shock design, Super Deluxe is free to tackle new ones — on the trail. This changes everything.
Shock Adjustments: External Rebound | 3-Position Compression (Open, Pedal, Lock) | Rapid Recovery Rebound Damping | Air Pressure Spring Adjust
Integrated Rubber Chainstay Protection
Collet Style Main Pivot Hardware
ISCG 05 Chainguide Mounting
Syntace X12 Rear 142 mm Axle + Universal Transition Derailleur Hanger
Full Size Water Bottle Compatibility

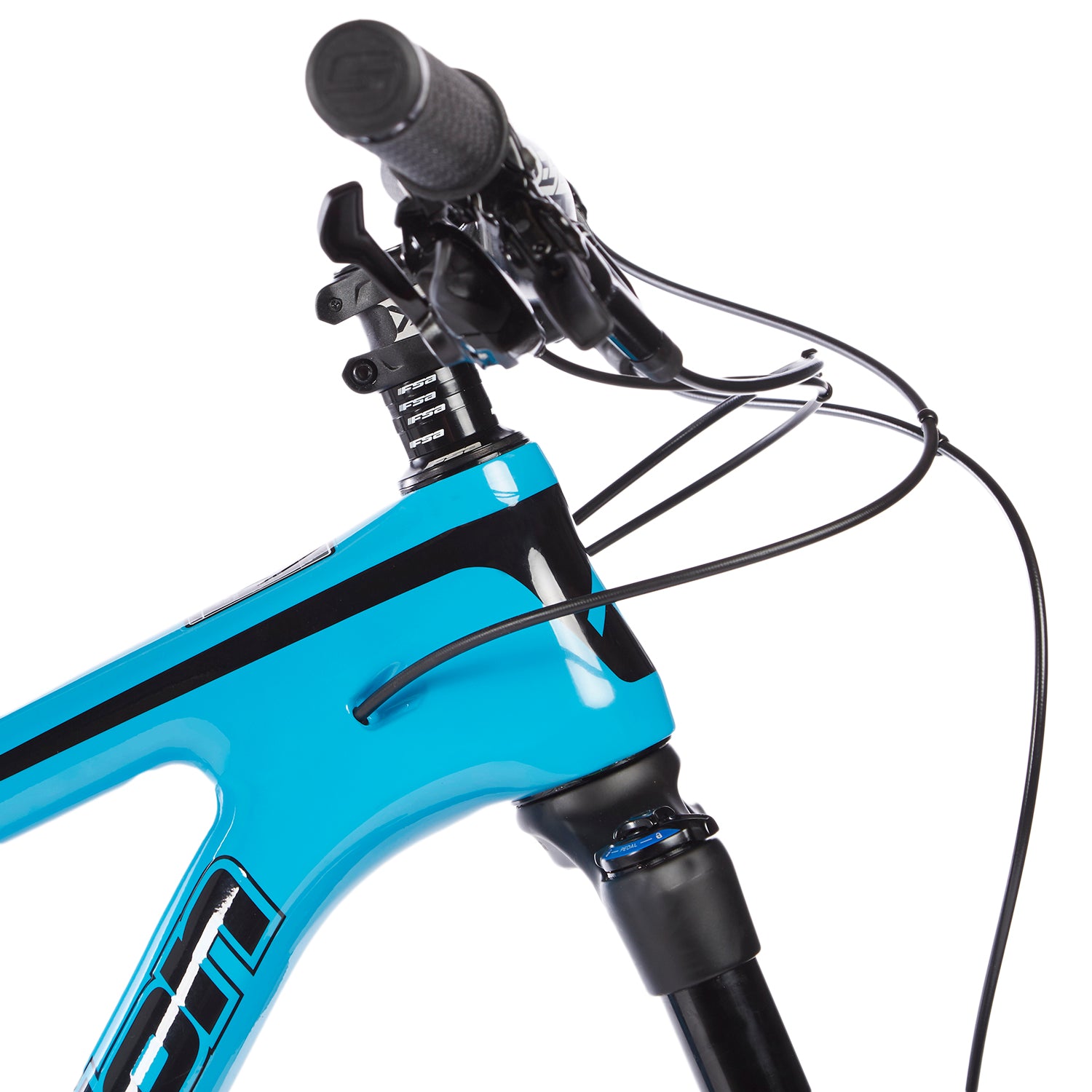

Tubes Inside Tubes Cable Routing Technology
User Friendly 73 mm Threaded Bottom Bracket
Fork:

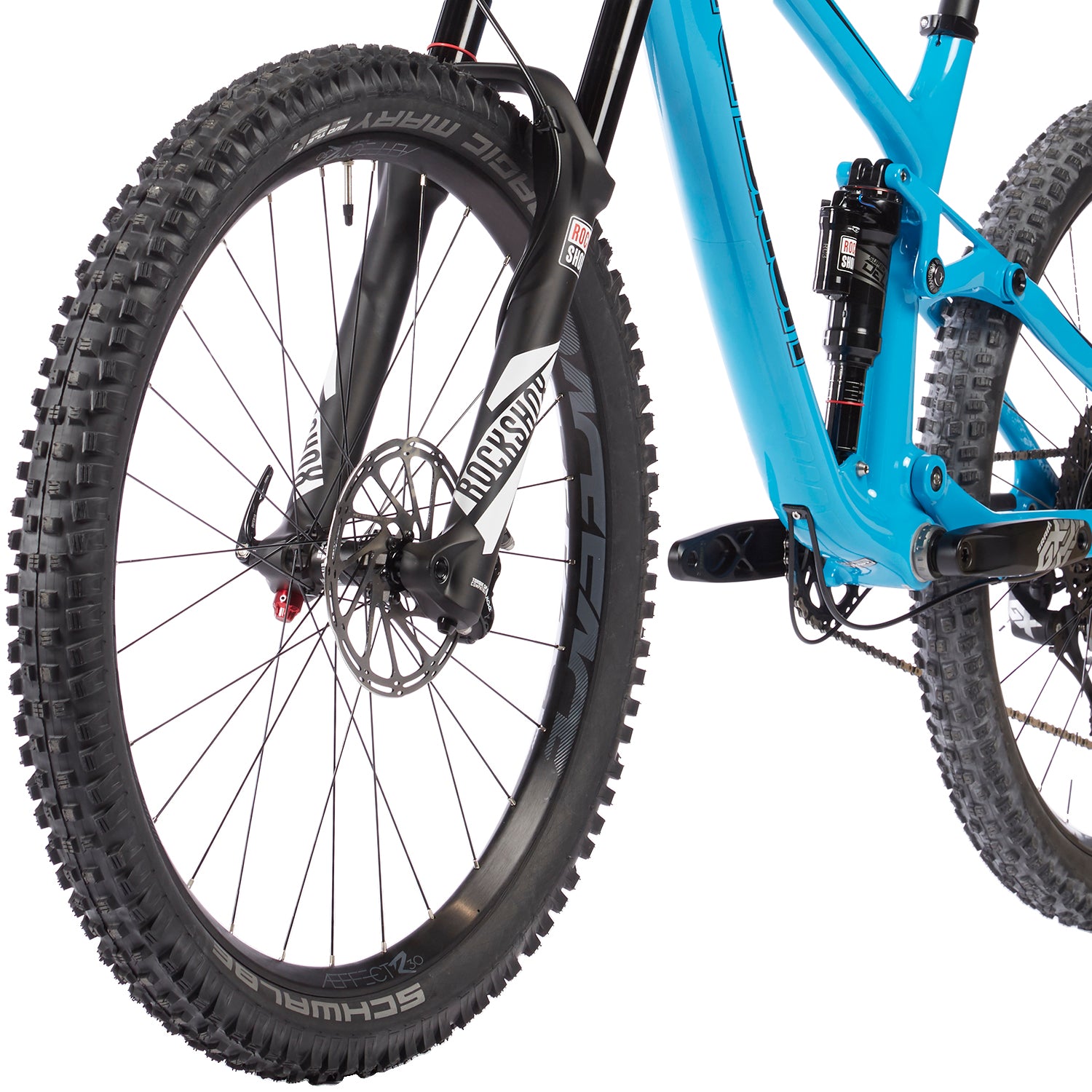

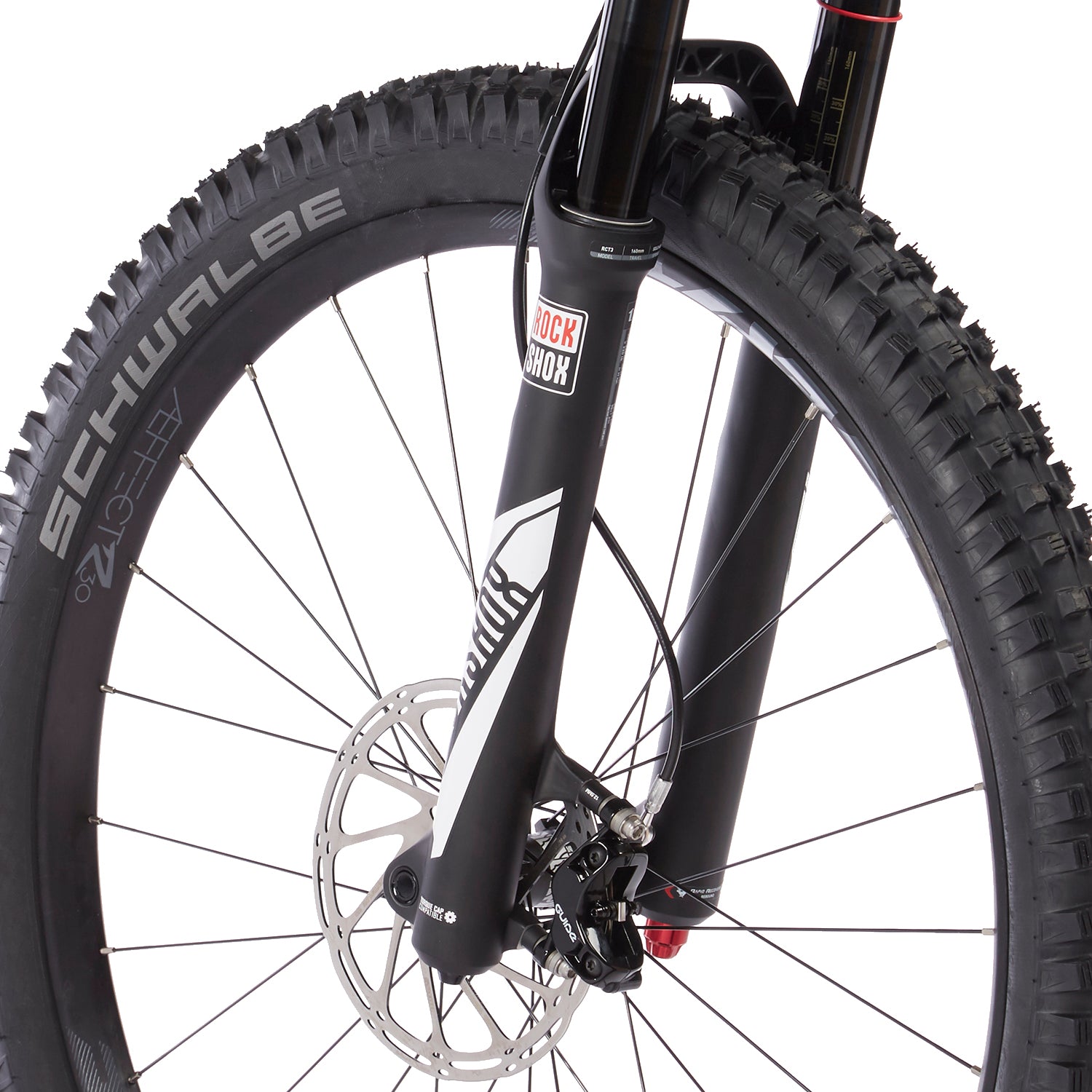

RockShox Lyrik RCT3 Solo Air: With a completely new chassis, featuring tapered legs and a taller brace for stiffness and light weight, and a collection of new technologies such as a re-tuned Solo Air spring with additional negative volume for a plusher initial stroke, Bottomless Token tunability in both Solo Air and Dual Position Air configurations, SKF wiper seals for lower friction and better sealing, and user tunable rebound damping via internal shims (same as BoXXer), Lyrik is built to inspire confidence and blur the lines of capability that limit all other forks in its class. Proven features include 35mm Fast Black upper tubes and an RC Charger Damper with a new SKF cartridge seal to reduce friction and extended service intervals.
Fork Adjustments: External Rebound | 3-Position Compression Adjustment (Open / Pedal / Firm) | Low Speed Compression
Drive Train:

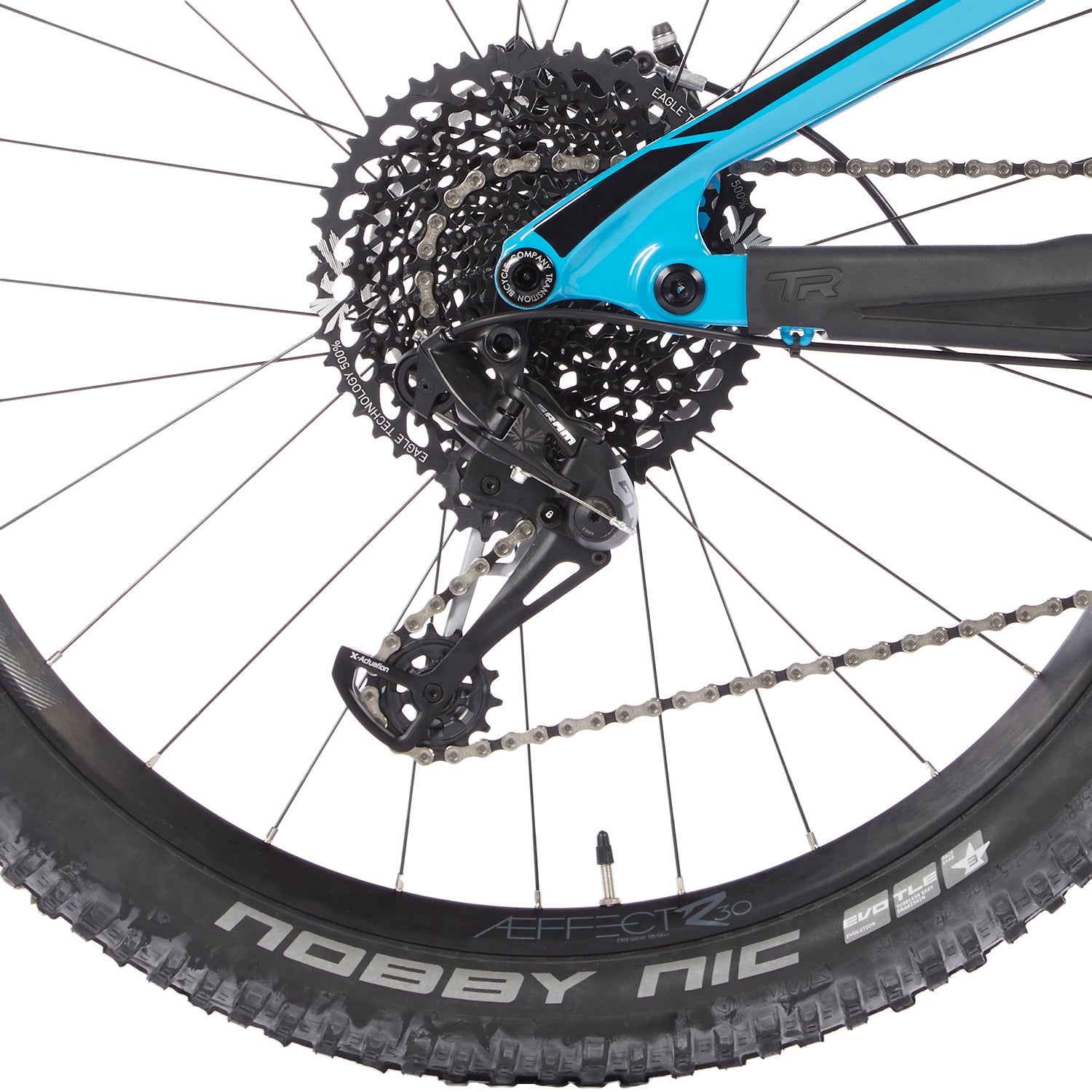

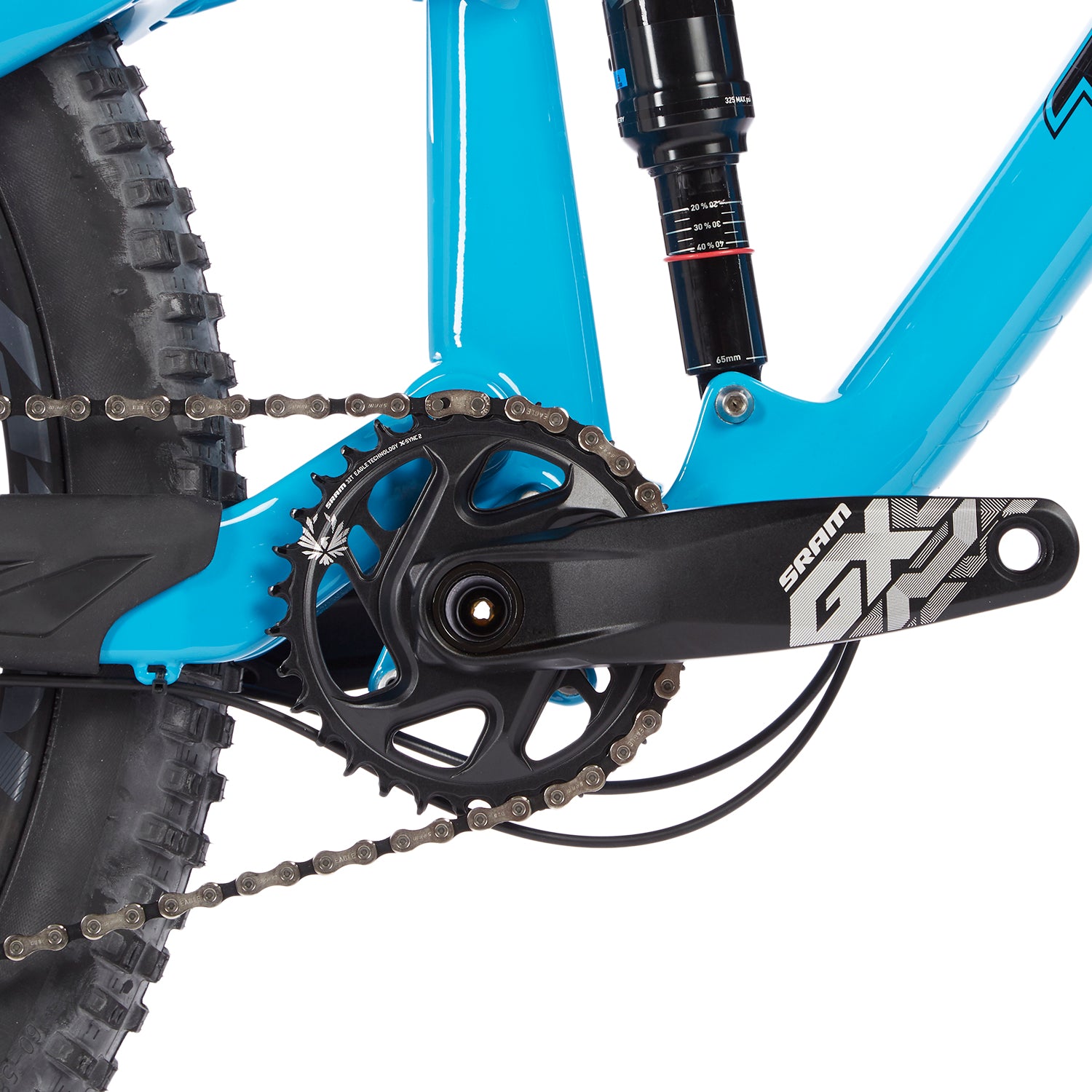

SRAM GX Eagle™ Drivetrain: Eagle™ drivetrains are designed, tested and proven to deliver the lightest, highest-performing, most durable systems for all riders on any trail. Eagle™ technology provides an expanded, optimum gear range that allows you to realize your bike's potential beyond where it has ever been. Every SRAM GX Eagle™ component is 100% compatible with all levels of SRAM Eagle™ drivetrain systems.
Brakes:

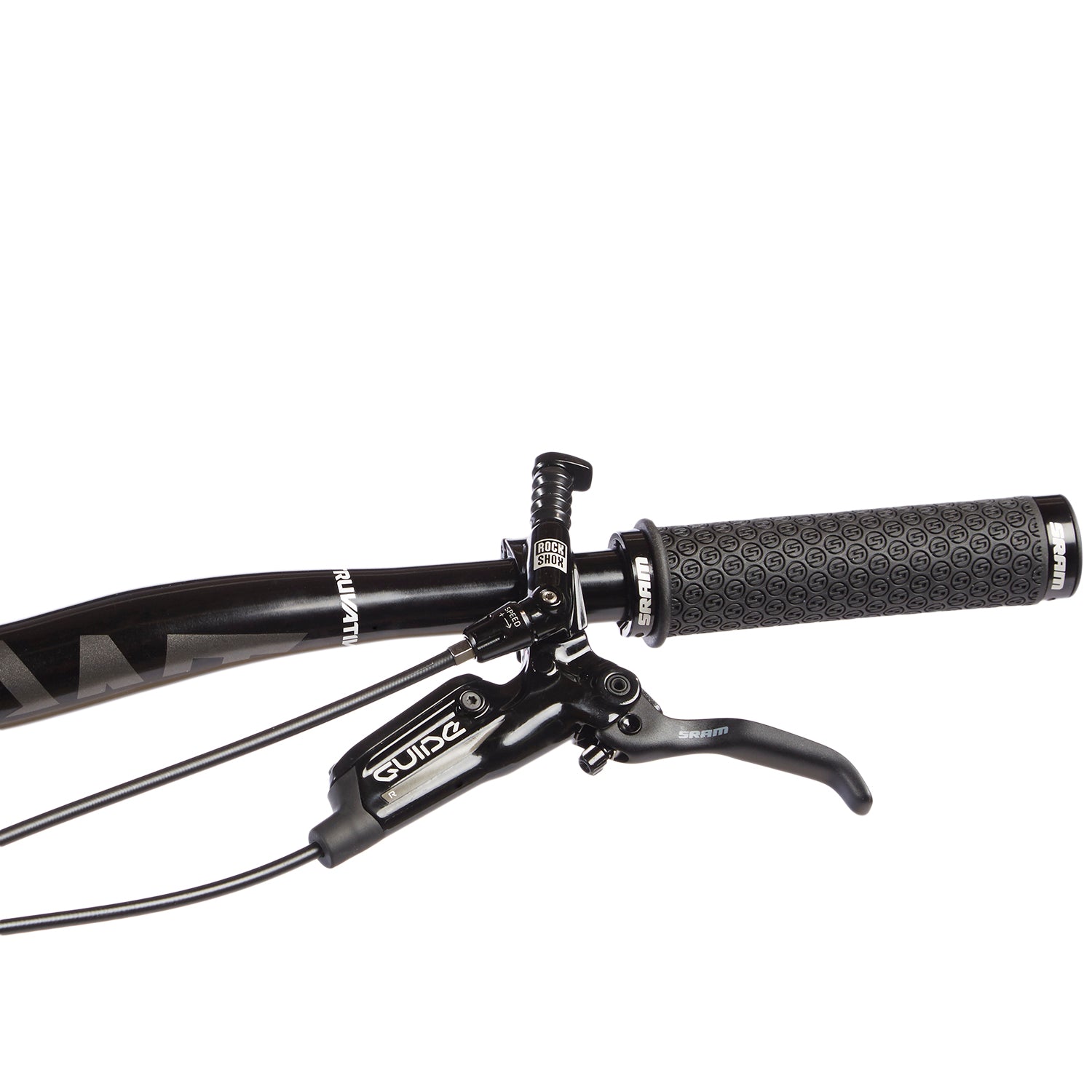

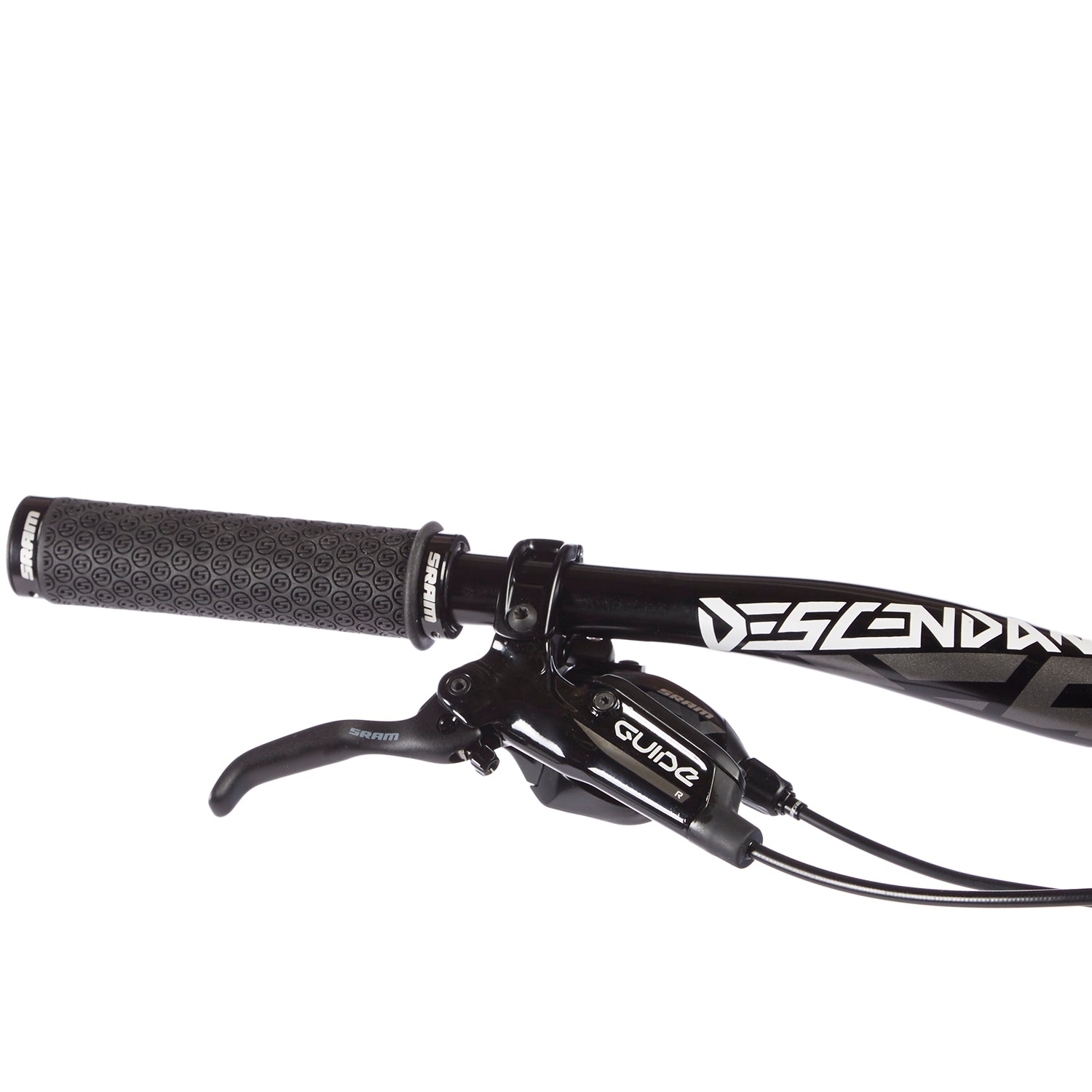

SRAM Guide R Hydrualic Disc Brakes: What’s it going to take to ride that line? It’s steep. It’s rocky. You’ve passed it a hundred times. But not this time. With the all-new SRAM Guide R, you have the power. Proven 4-piston calipers give you smooth, one-finger control. Features like Reach Adjust let you dial it in just right. And Guide perfectly complements other SRAM components and gives you flawless performance on every ride. Now featuring the World Championship-winning S4 caliper with Bleeding Edge™ and Heat Shield technologies.

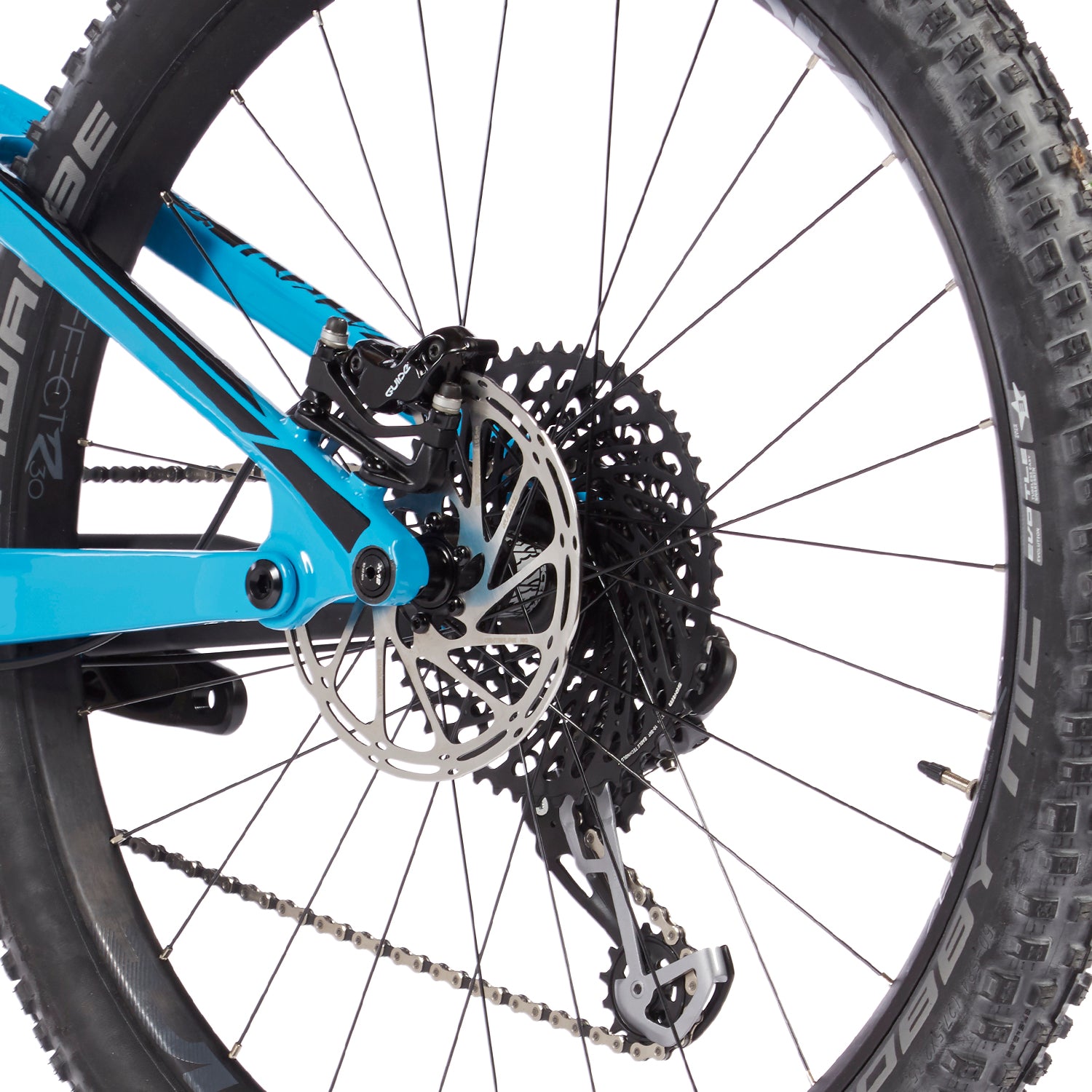

SRAM Centerline Rotors: The new Centerline Rotor was designed to keep the center of friction consistent throughout rotation thereby minimizing vibration offering consistent performance and a quiet ride.
Wheelset:
Race Face Æffect R Wheelset: Boasting a 30mm internal rim width and increased strength, the Æffect R is built to shred aggressive all-mountain trails and Enduro races. In addition to a great rim, the Æffect R incorporates a new Race Face Trace hub design with full cartridge bearings for extended life and durability. The hub also boasts a competitive 9.2º of engagement using a durable 3 pawl design. These hubs are tough, think a clydesdale with a motor kind of tough. Æffect wheels can handle almost anything you can throw at them.
Schwalbe Magic Mary Tire (Front): The perfect choice for virtually any track. Intermediate tread for maximum braking traction and cornering grip even in extremely muddy terrain thanks to strong shoulder studs and the aggressive, open tread design.
Schwalbe Nobby Nic Tire (Rear): The all-rounder that works in every situation, no matter the weather, no matter the terrain. Widest possible range of use: for tour and all-mountain, for difficult cross-country tracks as well as technically challenging enduro trails. Excellent traction and braking performance thanks to special central stud arrangement, large shoulder studs for excellent control on tricky trails.
Additional Features:
RockShox Reverb Stealth Dropper Seatpost: Don't let its familiar good looks fool you -- Reverb is a whole new weapon. Its internals have been completely re-engineered to improve on its already legendary performance and to offer enhanced reliability: all the smallest details, down to the single seal, have been re-evaluated and updated to pass the hardest and longest durability tests. Additional bushing overlap also improves performance over time. This is the brand-new Reverb, engineered for the next-generation mountain biker.
Shipping Information:
Oversize Item: Ships within the continental U.S. for $69. HI and AK shipping available. Please call for details.
Specs
Fork Travel:
160mm
Rear Travel:
155mm
Handlebar:

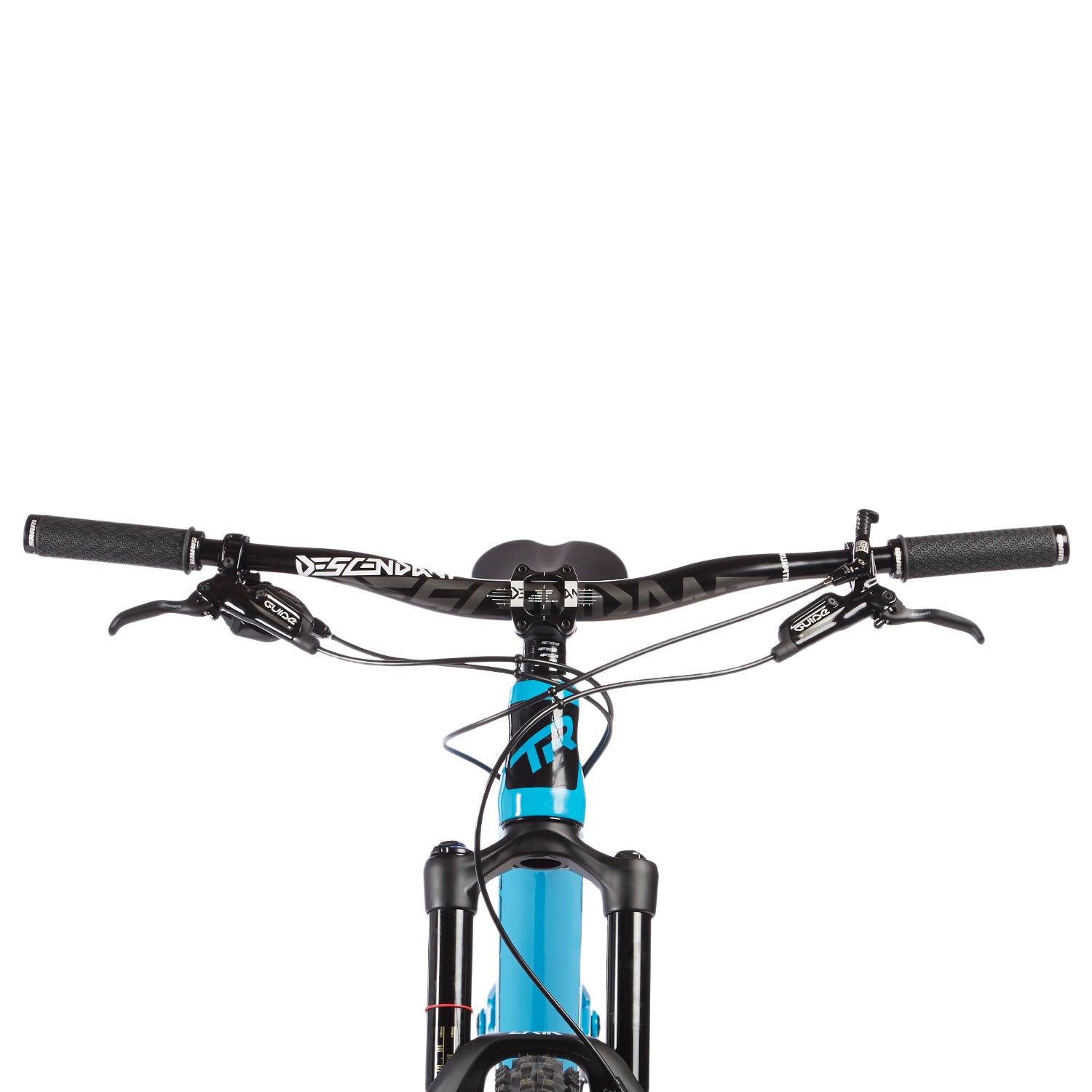

Truvativ Descendant (31.8mm x 800mm x 25mm)
Biking Type:
Mountain
Used For:
Enduro
Frame Material:
Carbon
Gearing:
1 x 12
Stanchion Diameter:
35mm
Rear Shock:
RockShox Super Deluxe RC3
Shifters:
SRAM GX Eagle
Rear Derailleur:
SRAM GX Eagle, 12-Speed
Crankset:
SRAM GX Eagle
Cassette:
SRAM GX Eagle XG-1275, 10-50t
Chain:
SRAM GX Eagle, 12-Speed
Bottom Bracket:
SRAM Team GXP
Pedals:
Not Included
Brake Levers:
SRAM Guide R
Brake Calipers:
SRAM Guide R
Rotors:
SRAM Centerline (180mm)
Headset:
FSA Orbit 1.5E ZS No.57E
Bar Tape/Grips:
SRAM Locking Grips
Stem:
Truvativ Descendant (50mm x 31.8mm)
Saddle:

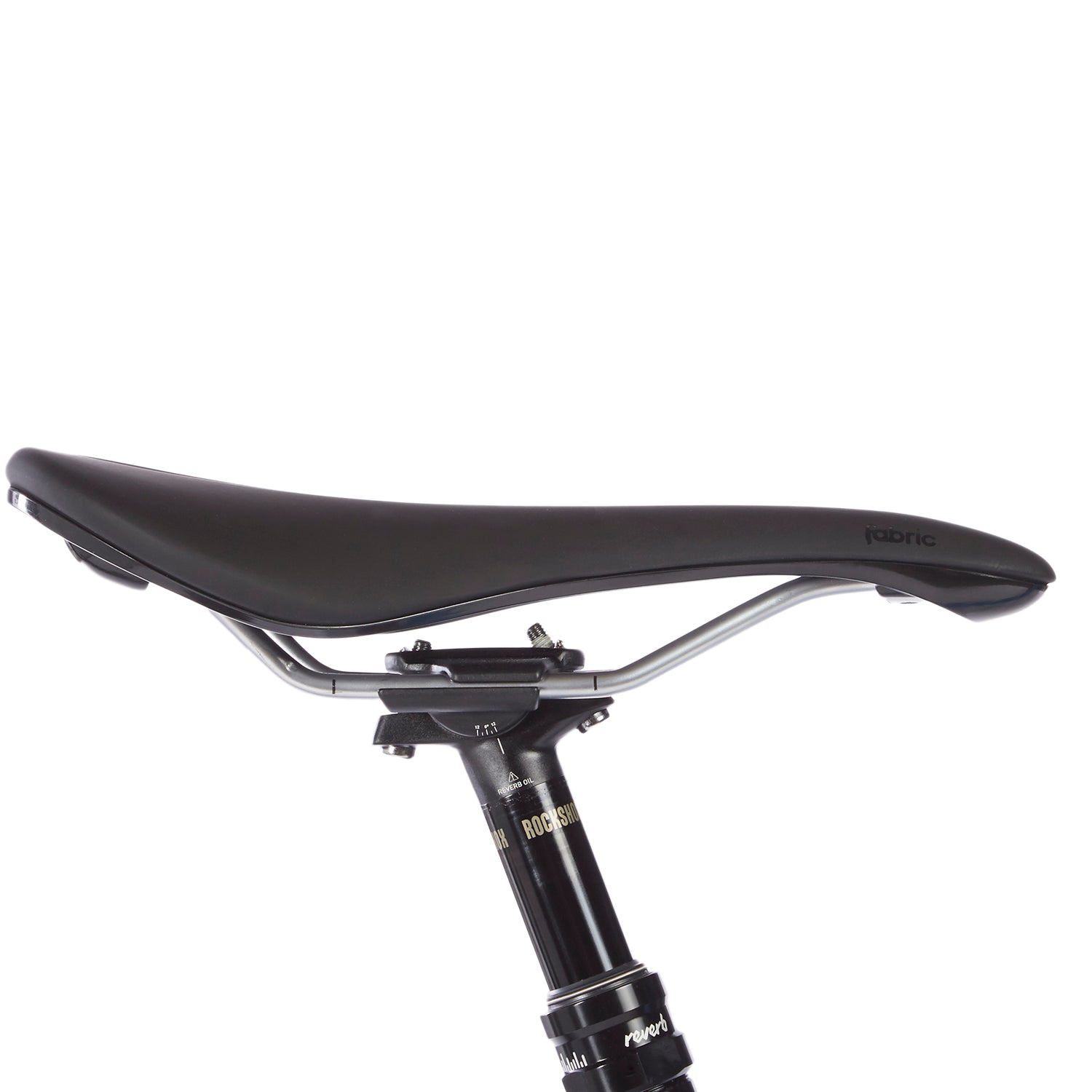

Fabric Scoop Shallow Elite
Seatpost:
RockShox Reverb Stealth Dropper
Wheelset:
Race Face Aeffect R
Front Tire:
Schwalbe Magic Mary 2.35" | TrailStar, Snakeskin, Evo, TL Easy
Rear Tire:
Schwalbe Nobby Nic 2.35" | EVO, Snakeskin, PaceStar, TL Easy
Warranty:
2 Years
Wheel Size:
27.5" (650b)
