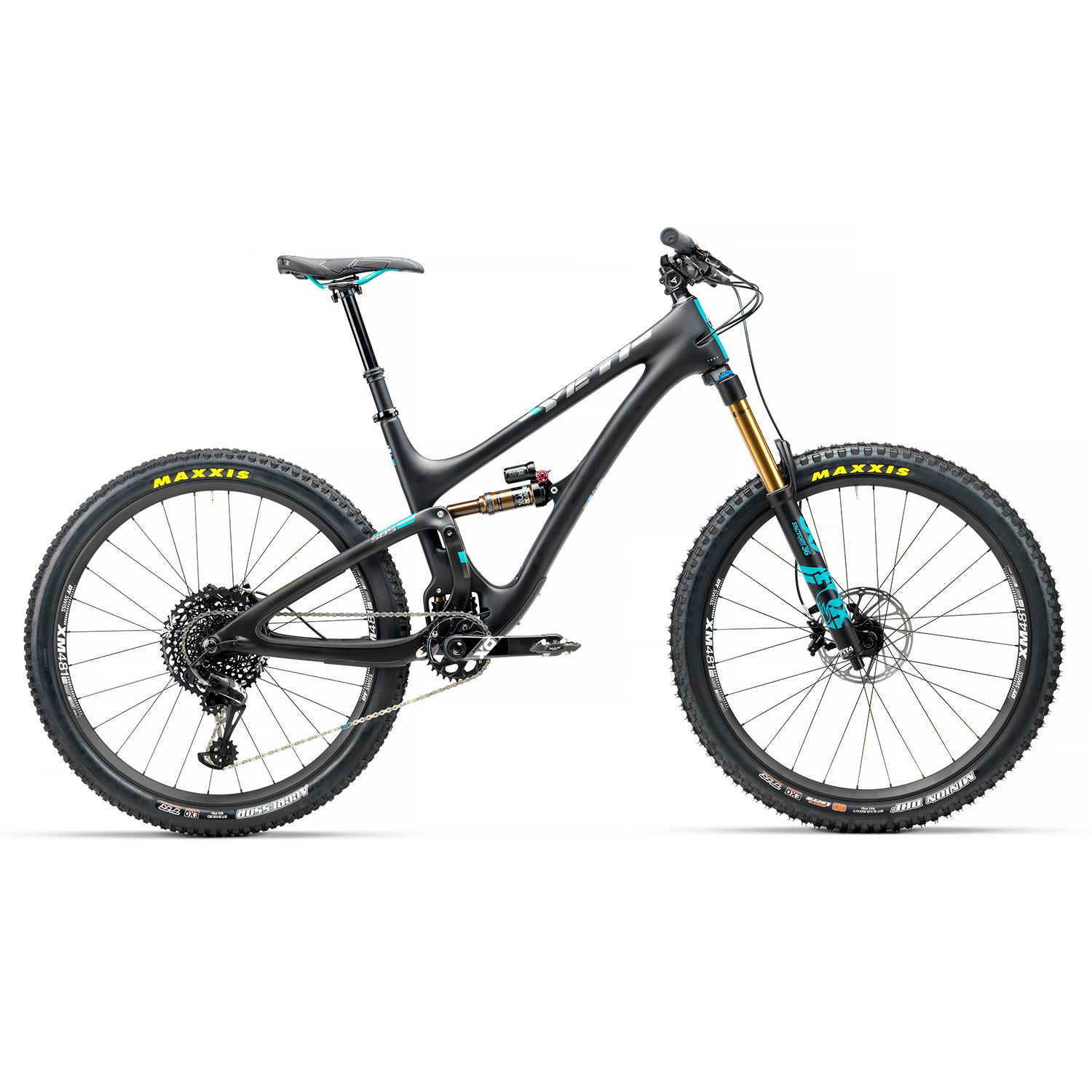

Yeti Cycles SB5 TURQ LR X01 Eagle Complete Mountain Bike 2018
SKU# EB-133978-1001
$5,759.20
$7,199.00
Find in Store
Checking availability...
Not available in store
Earn up to 10% back in rewards
Join Free (opens in a new tab)
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsYeti Cycles SB5 TURQ LR X01 Eagle Complete Mountain Bike 2018
With its TURQ frame that's lighter and stiffer than regular carbon framesets, and beefed up Fox Factory suspension specs, the Yeti Cycles SB5 Turq LR X01 Eagle Complete Mountain Bike is a rowdy rig that's been tried and tested by Yeti's pro riders and employees alike. Bolstered by a longer 160mm Kashima coated fork up front, and 180mm rotors in both the front and rear, this Lunch Ride edition of the versatile SB5 makes the party extra rowdy! A dreamy pedal pony for the aggressive trail rider who always opts for the spicier line, the Yeti Cycles SB5 Turq LR X01 Eagle Complete Mountain Bike is one of those bikes that demands respect from the rider and the trail alike.
Product Details
Frame/Shock:
TURQ Carbon Frameset: TURQ Series bikes are manufactured with the highest quality and best-performing carbon fiber available and offer the perfect balance of stiffness, durability, and compliance. The result is a bike that feels smooth, solid and aggressive.
Switch Infinity Suspension: Switch Infinity utilizes a patented translating pivot that switches direction as the bike moves through its travel. This provides excellent anti-squat characteristics for superior pedaling performance as the pivot translates upward. As the system reaches the inflection point, the main pivot translates downward. The result is ideal suspension characteristics deeper into travel, creating a controlled and bottomless suspension feel.

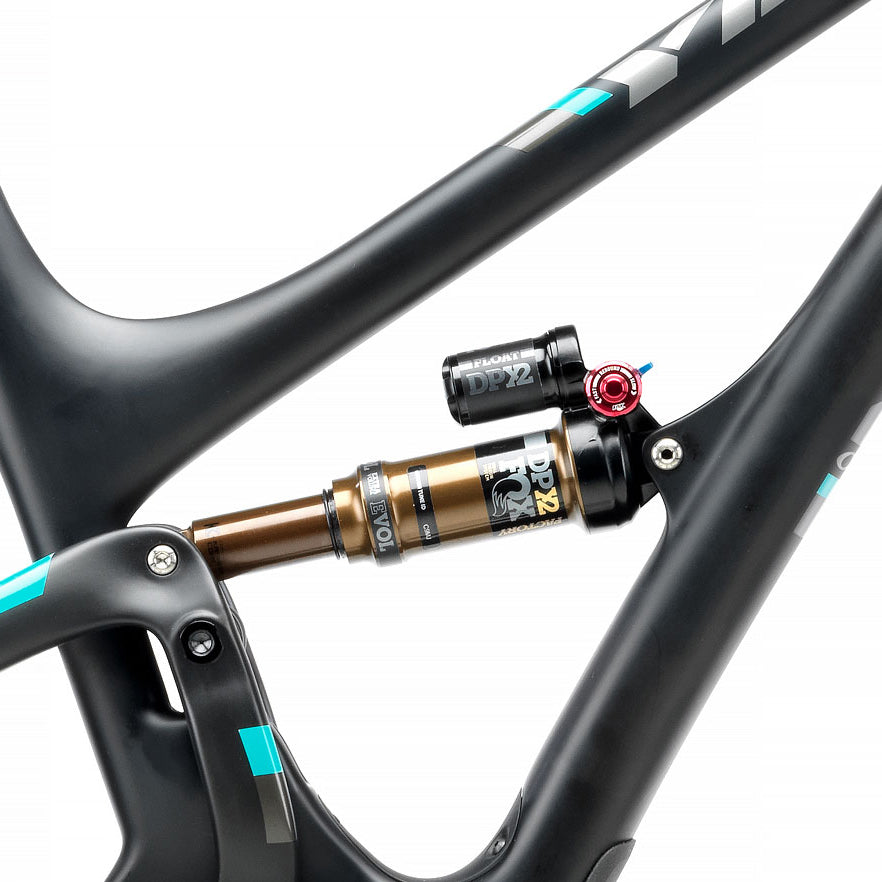

Fox Factory DPX2 Shock: Combining DPS XC efficiency and X2 DH performance, the DPX2 is the ultimate trail shock. The Dual Piston Base Valve has dedicated compression and lockout circuits for each of the three modes—Open, Medium, and Firm. It also features a recirculating damper design found in X2 shocks, creating excellent small bump sensitivity, great mid-stroke damping support, and better control in transitions.
Shock Adjustments: 3-Position Lever (Open, Medium, Firm) | Open Mode Adjust Tuning Range (10 Clicks) | Rebound Adjust | Air Spring Pressure
Collet Axle System: Located on the pivots to reduce bearing wear.
Internal Cable Routing: Internally molded carbon tubes inside of the frame for hassle-free cable routing.
Integrated ISCG-05 Mounts
Tapered Inset Headtube
Boost Hub Spacing Front and Rear
Custom Down Tube Protector & Chain Guards
Integrated Axle & Derailleur Hanger System
Fork:

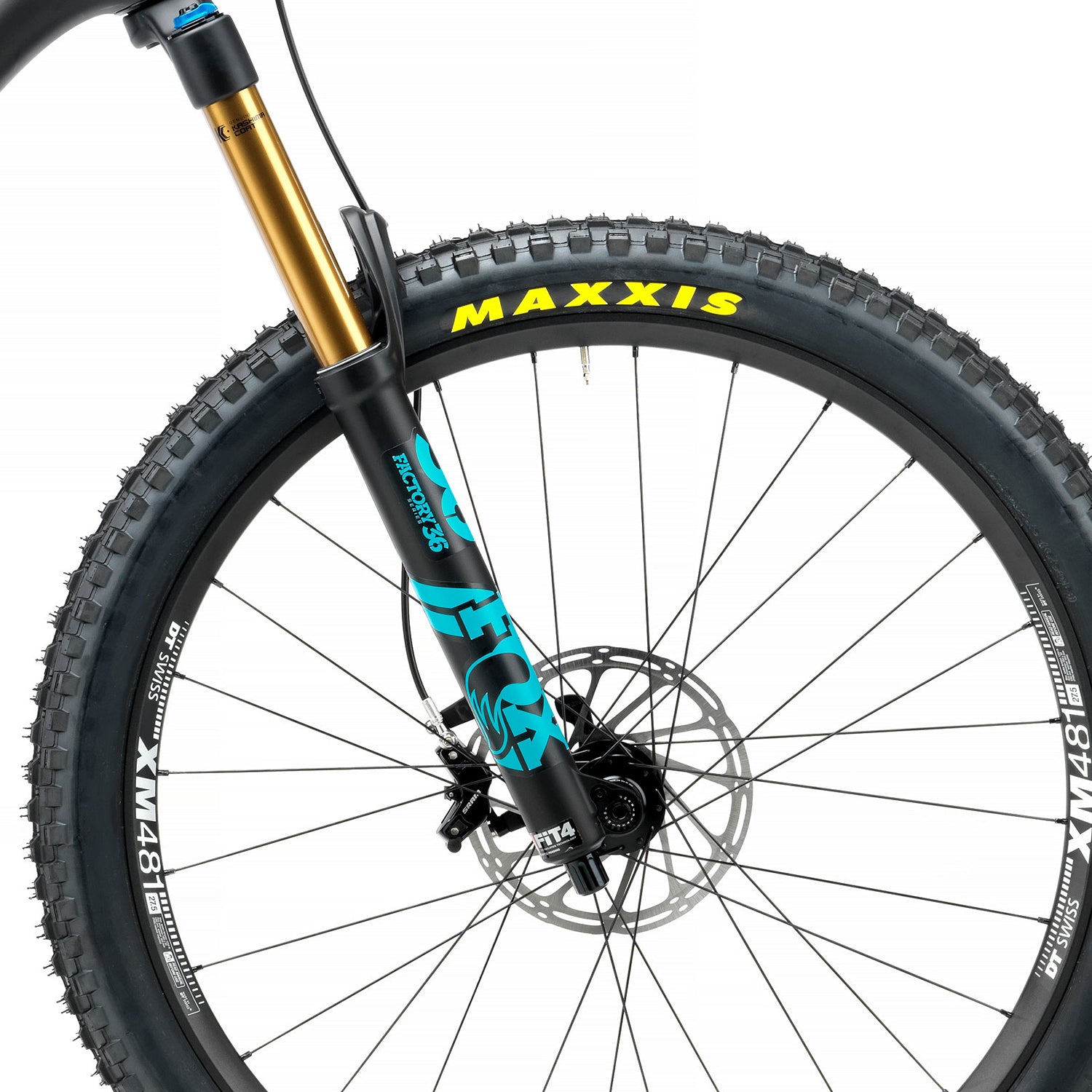

Fox 36 Factory Fork: "Factory" says it all. The best-of-the-best technology Fox has to offer is available in their Factory Series models with a buttery smooth, and ultra durable Genuine Kashima Coat. These products are World Cup proven.
Fork Adjustments: FIT4 Damper | 3-Position Lever (Open, Medium, Firm) | Open Mode Adjust Tuning Range (22 Clicks) | Rebound Adjust | Air Spring Pressure
Genuine Kashima Coat: Kashima's distinctive gold color is backed by its high-performance attributes--properties that provide an exceptionally smooth feel and extreme durability.
Drive Train:
SRAM X01 Eagle™ Shifter: Tucked neatly beneath your handlebars, the X01 Eagle™ X-ACTUATION™ trigger shifter is the nerve center of the Eagle™ drivetrain. Its internal works have been updated to include a 12th gear, and improved to enhance trigger feel, precision and durability. Whether you’re 4 stages into the race or days away from civilization, the X01 Eagle™ trigger shifter is your faithful 1x touch point.

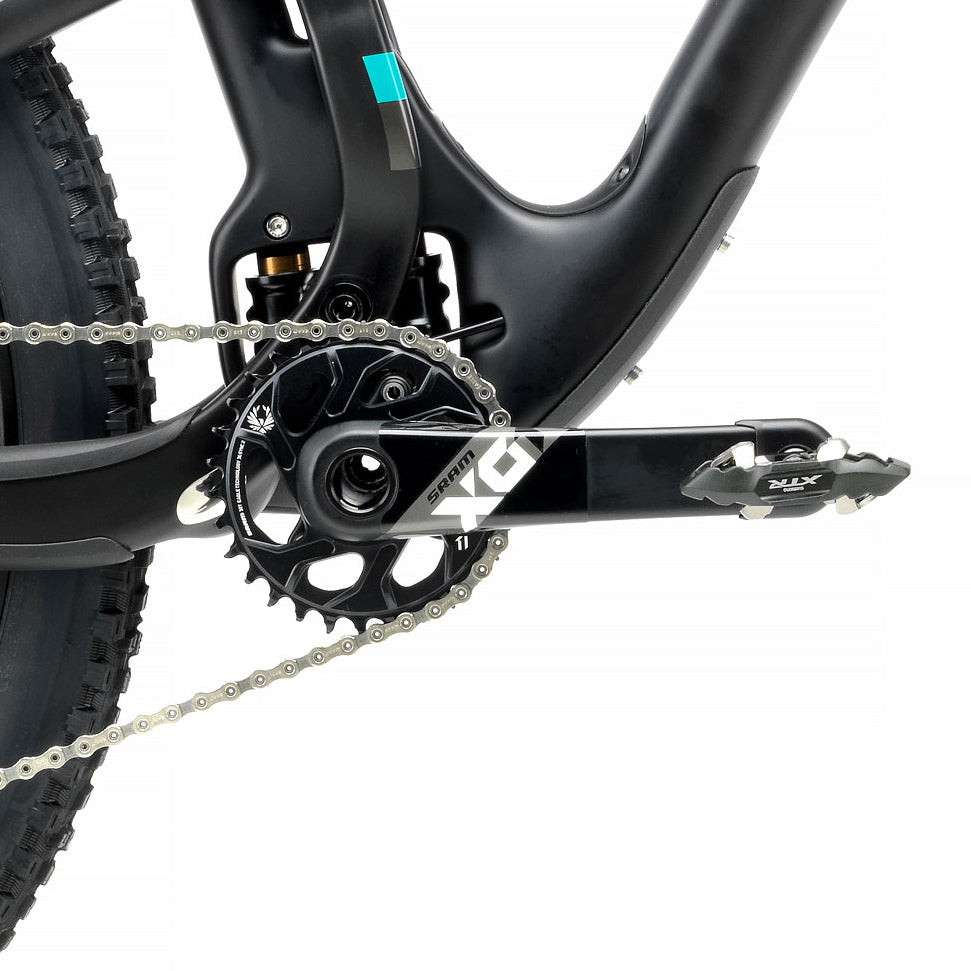

SRAM X01 Carbon Eagle™ Crankset: SRAM knows you have a lot of choices when choosing a crankset, and your choice says a lot about your personal style. They designed the new X01 Eagle™ crankset for riders who feel most stylish when they stand on top of the podium. This is a completely reengineered design, employing a proprietary CARBON TUNED™ lay-up technology. Built tough, to handle aggressive lines through rock gardens and big hits wherever you find them. The new X01 Eagle™ is SRAM's best, toughest and most aggressive Trail and Enduro crankset thanks to SRAM DUB™ technology, which features a better-engineered bottom bracket and a new spindle design. Together, these allow for a more uniform approach to bottom bracket fitment, better sealing against contamination—and define a new measure of durability. If you’re into that kind of thing.

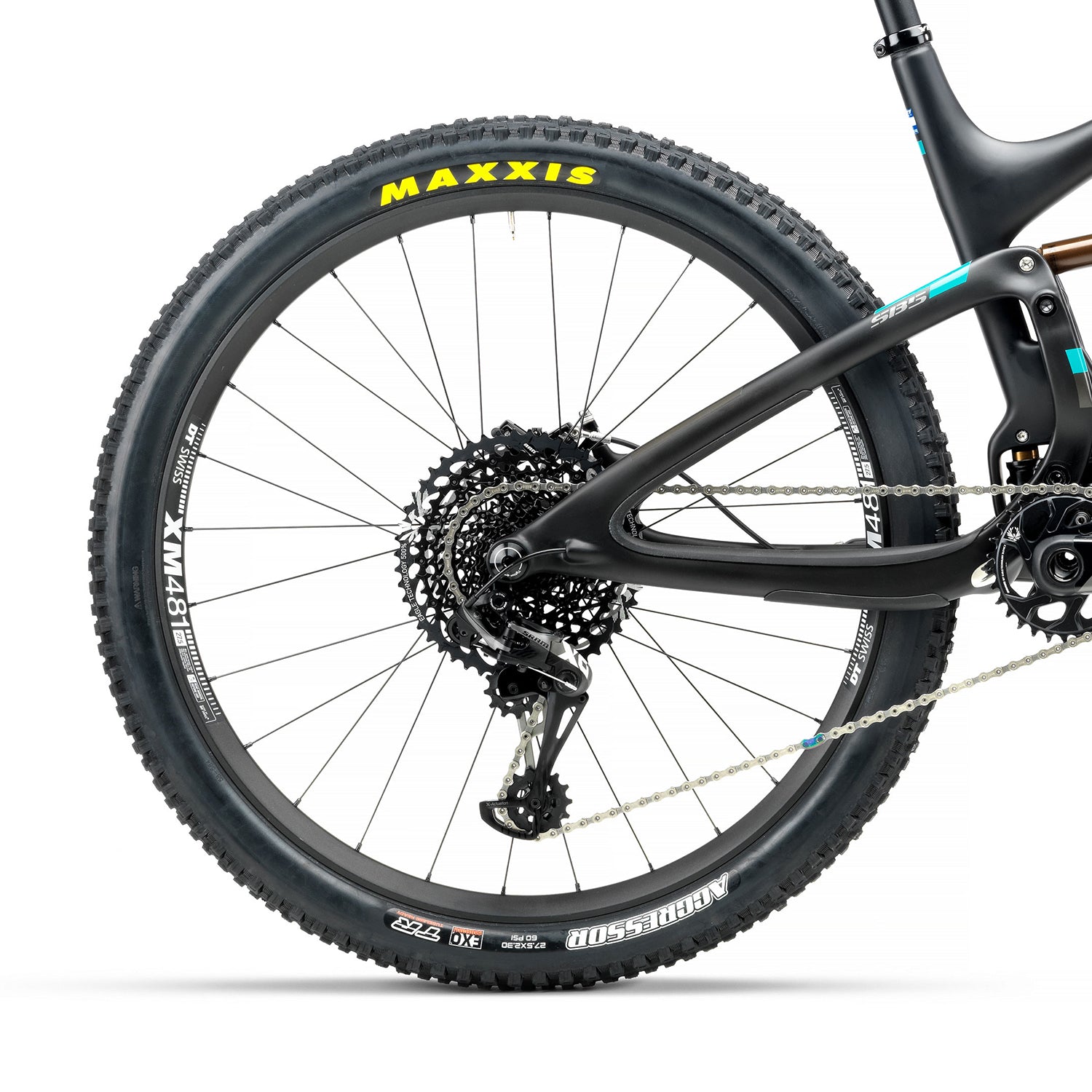

SRAM X01 Eagle™ Rear Derailleur: This new derailleur not only answers the Eagle™ drivetrain's need for greater capacity, but it's also the next evolution of SRAM's proven, 1x-specific X-HORIZON™ design. The larger, 14-tooth X-SYNC™ lower pulley allows 10- to 50-tooth cassette capacity in this relatively compact design, and also adds to Eagle's overall smooth-pedaling feel. SRAM's new Type-3 ROLLER BEARING CLUTCH™ features a smoother torque curve for a quieter, more consistent operation and feel. CAGE LOCK™ has been moved back and out of the way, protecting it from trail debris. And a redesigned, robust mounting system further improves the Eagle™ derailleur's performance and overall durability.
SRAM XG-1275 Eagle™ 10-50T Cassette: Ride anywhere with this wide range XG-1275, 10- to 50-tooth Eagle™ cassette that provides the right gear. Fast on the flats. Control on the climbs. Dictate your own pace, anywhere. Only Eagle™ technology is the 1x drivetrain engineered for infinite freedom. FULL PIN™ technology uses lightweight, stamped steel cogs held together with high-strength stainless steel pins. The result: a cassette that’s light and strong. The open design similar to SRAM's X-DOME™ cassette aids in mud clearance, giving you cleaner shifting performance and longer component life. New X-GLIDE™2 improves both inboard and outboard shifting, as well as chain retention.
SRAM GX Eagle™ Chain: The GX Eagle™ chain is designed with SRAM’s Eagle™ geometry, the GX Eagle™ chain features solid pin construction, Eagle™ PowerLock® and smooth, efficient shifting that you can count on every time out.
Brakes:

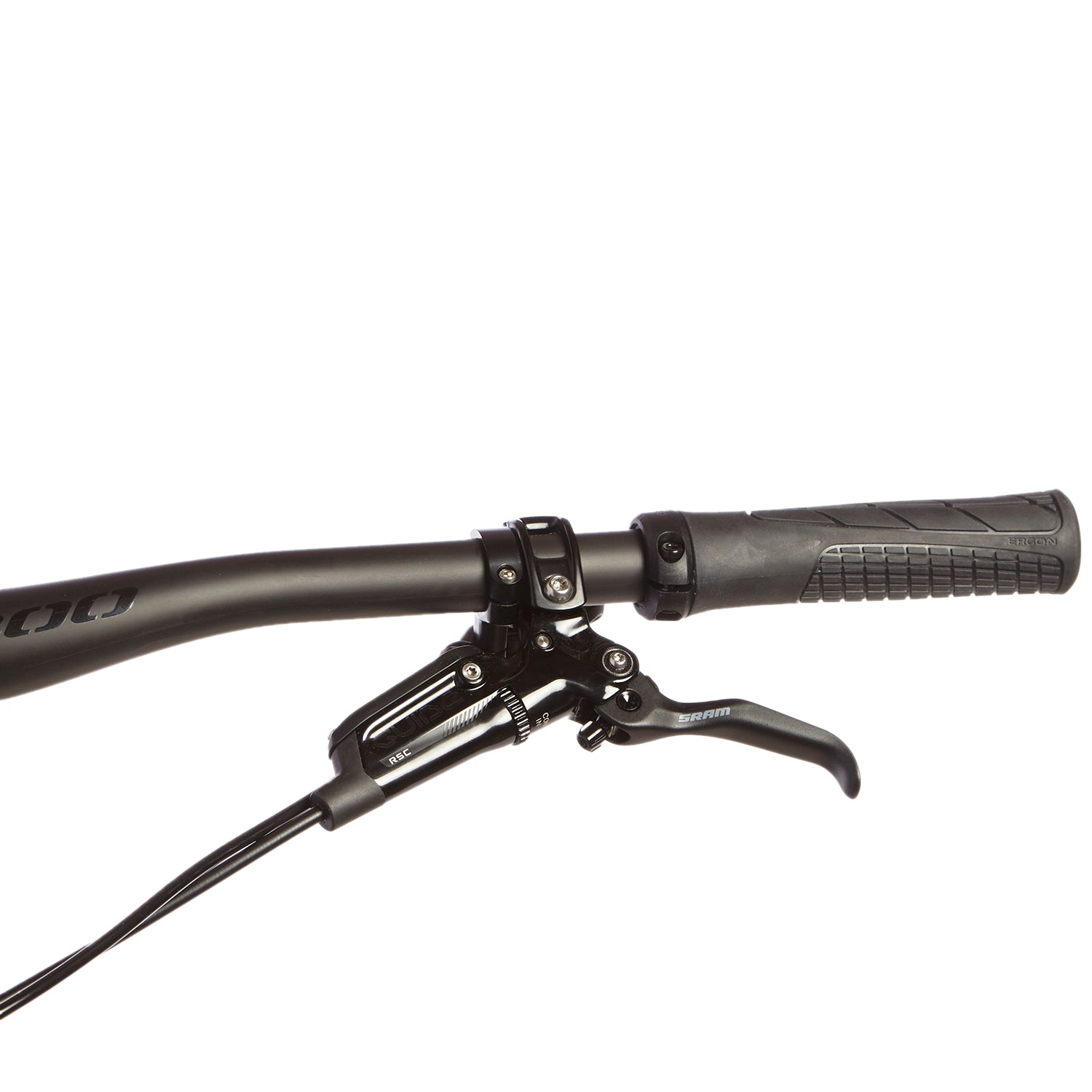

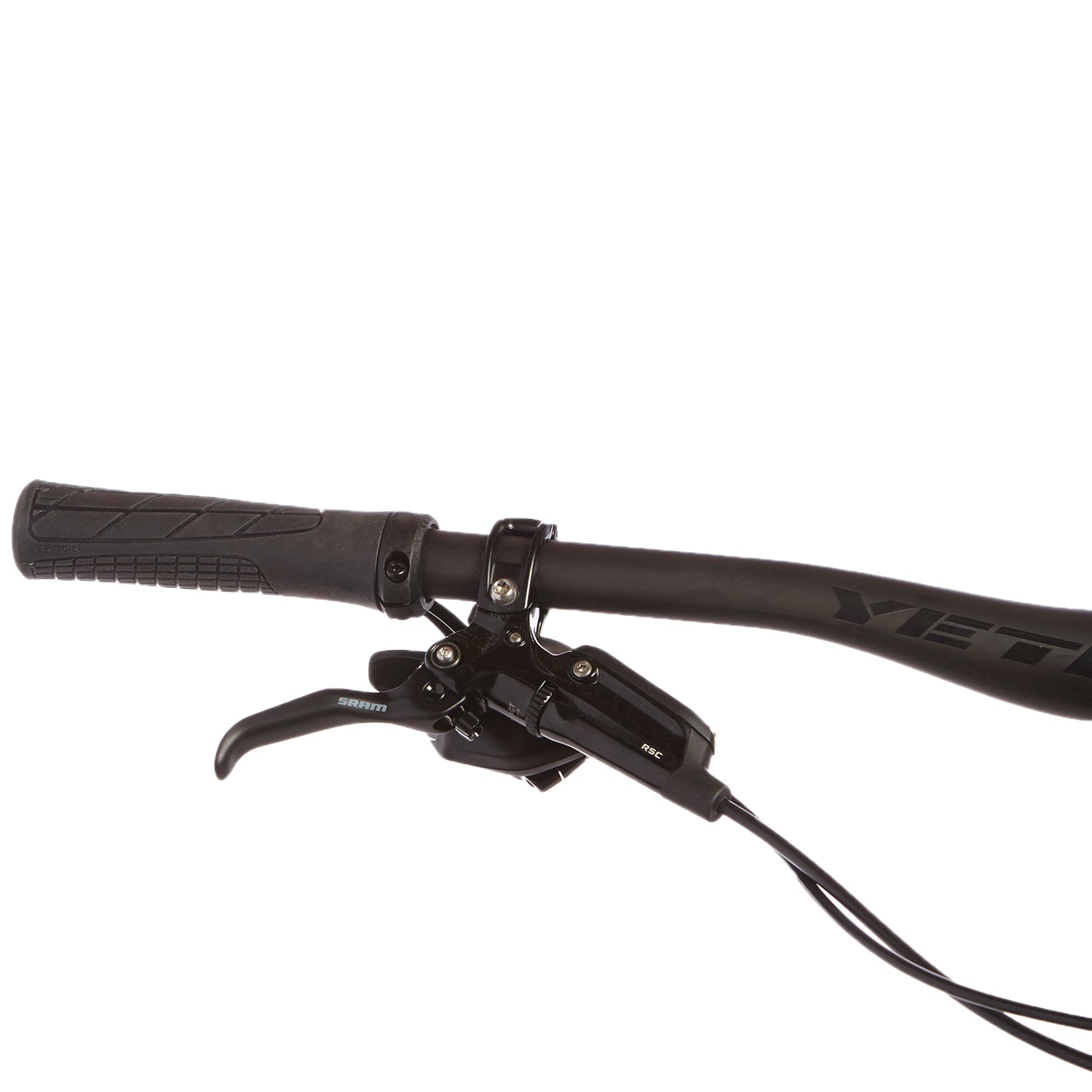

SRAM Guide RSC Hydraulic Disc Brakes: The new SRAM Guide RSC is packed with ride-enhancing performance that makes every new trail a trusted old friend. SRAM started from scratch to create the perfect combination of braking reliability and control. Brand new SwingLink™ technology provides more power, silky-smooth modulation, less deadband and better lever feel than you've ever experienced. Steep-line confidence. Deep-corner dominance. Ride every trail like you own it. Know you can. Now featuring the World Championship-winning S4 caliper with Bleeding Edge™ and Heat Shield technologies.
SRAM Centerline Rotors: The new Centerline Rotor was designed to keep the center of friction consistent throughout rotation thereby minimizing vibration offering consistent performance and a quiet ride.
Wheelset:
DT Swiss 350 Hubs: Whoever is looking for the most affordable high performance hubs available, should take a very close look at the 350 hub line-up. The same performance as its even higher end cousins comes with slightly less weight optimized parts to offer the same reliability at a much lower cost. Being available in all standards and for any application, the 350 hub is for those who maybe like to ride the trails a little more than drooling over catalogs and specs.
DT Swiss XM 481 Rims: Riders who like the idea of giving their tires some extra volume and support will find the ideal partner with the XM 481. Its full 30 mm of inner width together with a minimal hook and perfect tubeless compatibility make it ready to tackle all demanding trails, both up and down the mountain.
Maxxis Minion Front Tire: The Minion DHF was designed for the often loose and muddy conditions of aggressive all-mountain terrain. The DHF incorporates ramped knobs for low rolling resistance and channel-cut knobs to increase gripping edges, giving straight-line control and precise cornering.
Maxxis Aggressor Rear Tire: The Aggressor is designed for high-speed modern mountain bike trails. Advanced knob shaping creates extra gripping edges, and reinforced side knobs offer enhanced stability when cornering at speed. An all-around trail tire excelling on everything from loose cross country race courses to heavy all-mountain riding.
Additional Features:

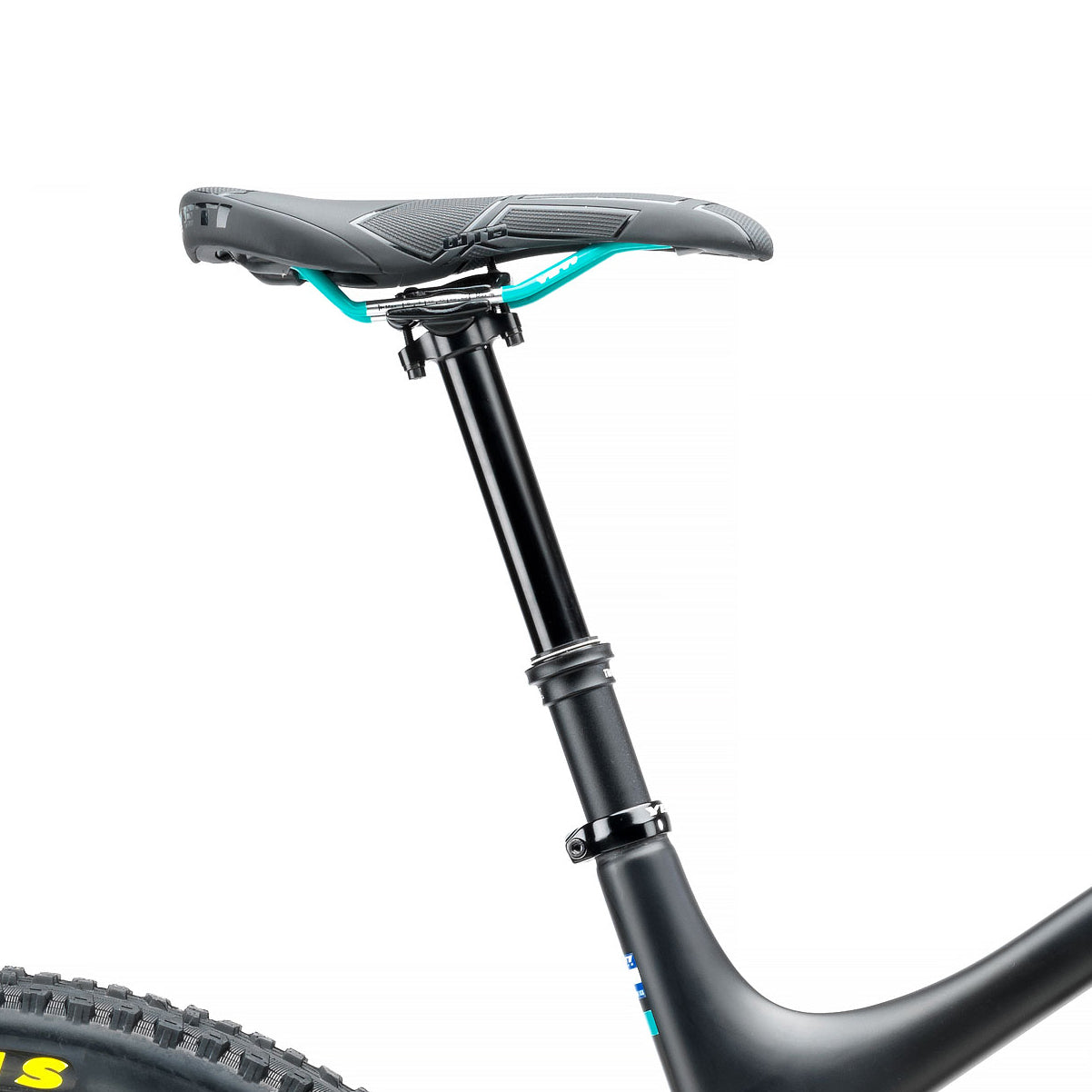

Fox Transfer Dropper Post: The Transfer seatpost features an infinitely adjustable design with the choice of internal or external cable routing. Low lever force and great modulation make it easy to regulate return speed and small height adjustments.
Shipping Information:
Oversize Item: Ships within the continental U.S. for $69. HI and AK shipping available. Please call for details.
Specs
Used For:
Trail,
Enduro
Fork Travel:
160mm
Rear Travel:
127mm

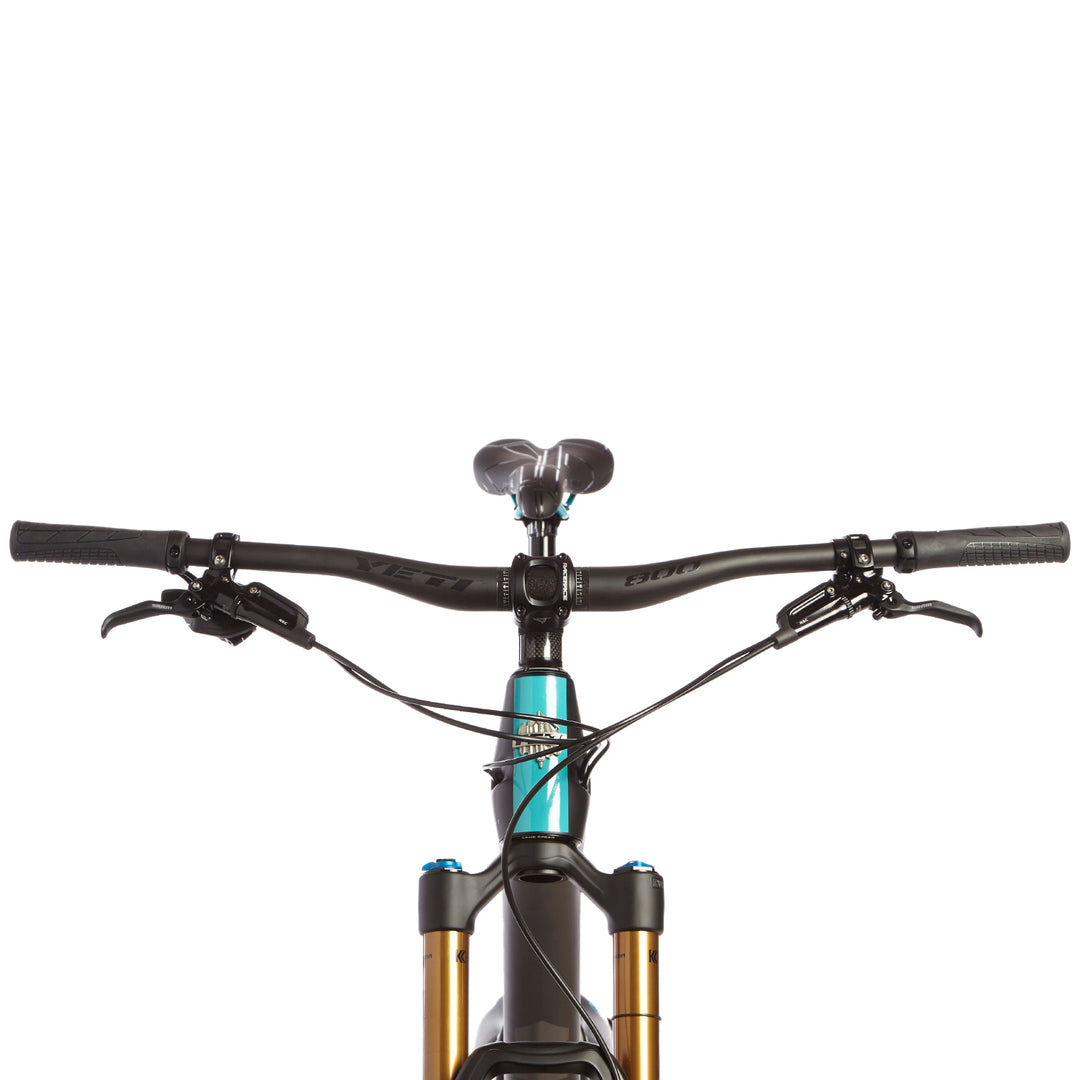

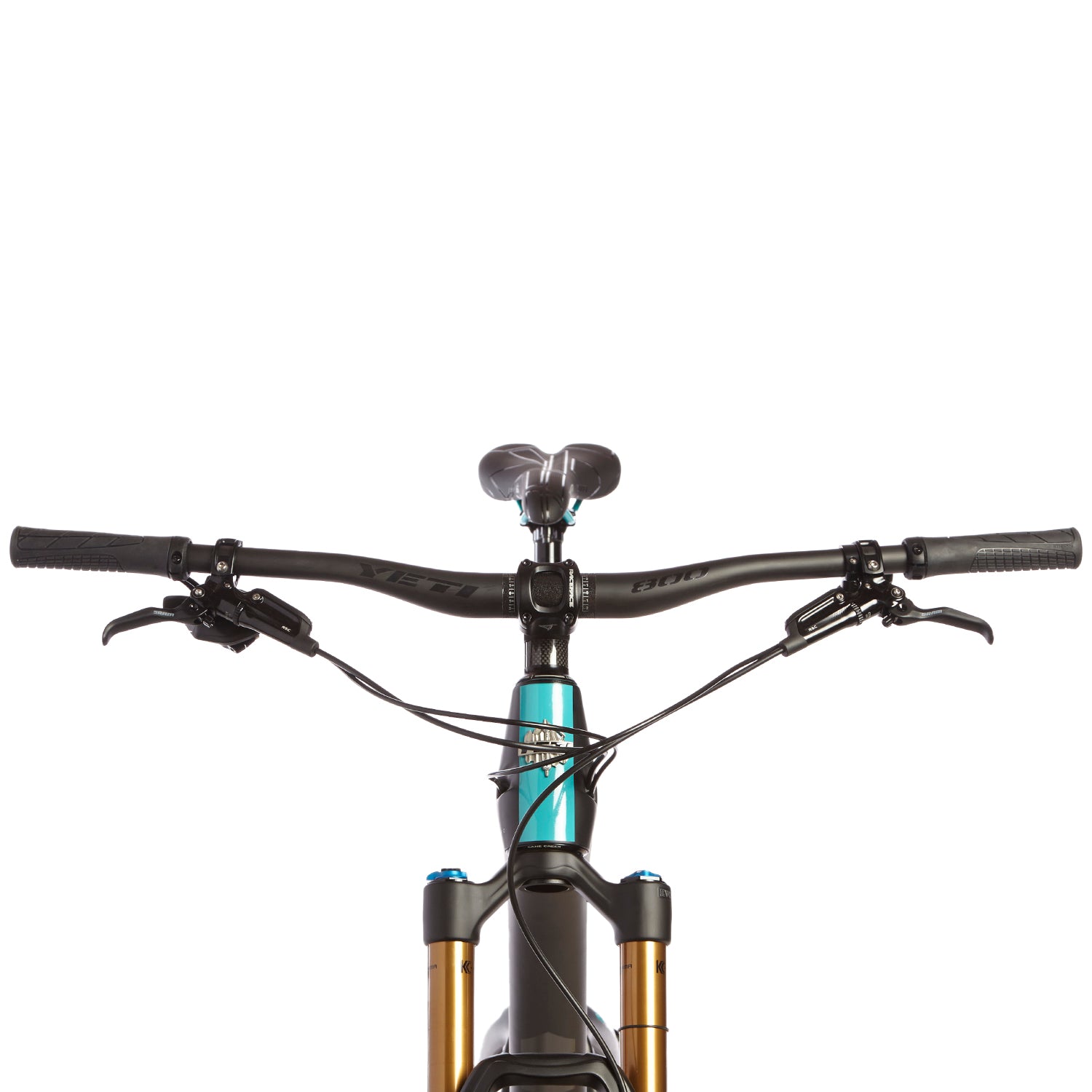

Handlebar:
Yeti Carbon, 35 x 800mm
Weight:
27.00lbs,
12.25kg
Biking Type:
Mountain
Frame Material:
Carbon
Gearing:
1 x 12
Stanchion Diameter:
36mm
Rear Shock:
Fox Factory DPX2
Shifters:
SRAM X01 Eagle
Rear Derailleur:
SRAM X01 Eagle, 12-Speed
Crankset:
SRAM X01 Eagle Carbon, 30t
Cassette:
SRAM GX Eagle XG-1275, 10-50t
Chain:
SRAM GX Eagle, 12-Speed
Bottom Bracket:
SRAM GXP BB92
Pedals:
Not Included
Brake Levers:
SRAM Guide RSC
Brake Calipers:
SRAM Guide RSC
Rotors:
SRAM Centerline (180mm)
Headset:
Cane Creek 40 Inset Taper
Bar Tape/Grips:
Ergon GA2
Stem:
Race Face Turbine Basic (35mm x 50mm)
Saddle:
WTB Custom
Seatpost:
Fox Transfer Dropper
Hubs:
DT Swiss 350
Rims:
DT Swiss XM 481
Front Tire:
Maxxis Minion DHF 2.5"
Rear Tire:
Maxxis Aggressor 2.3" [REVISIT!!!!]
Warranty:
5 Years (Frame & Handlebars Only)
Wheel Size:
27.5" (650b)
