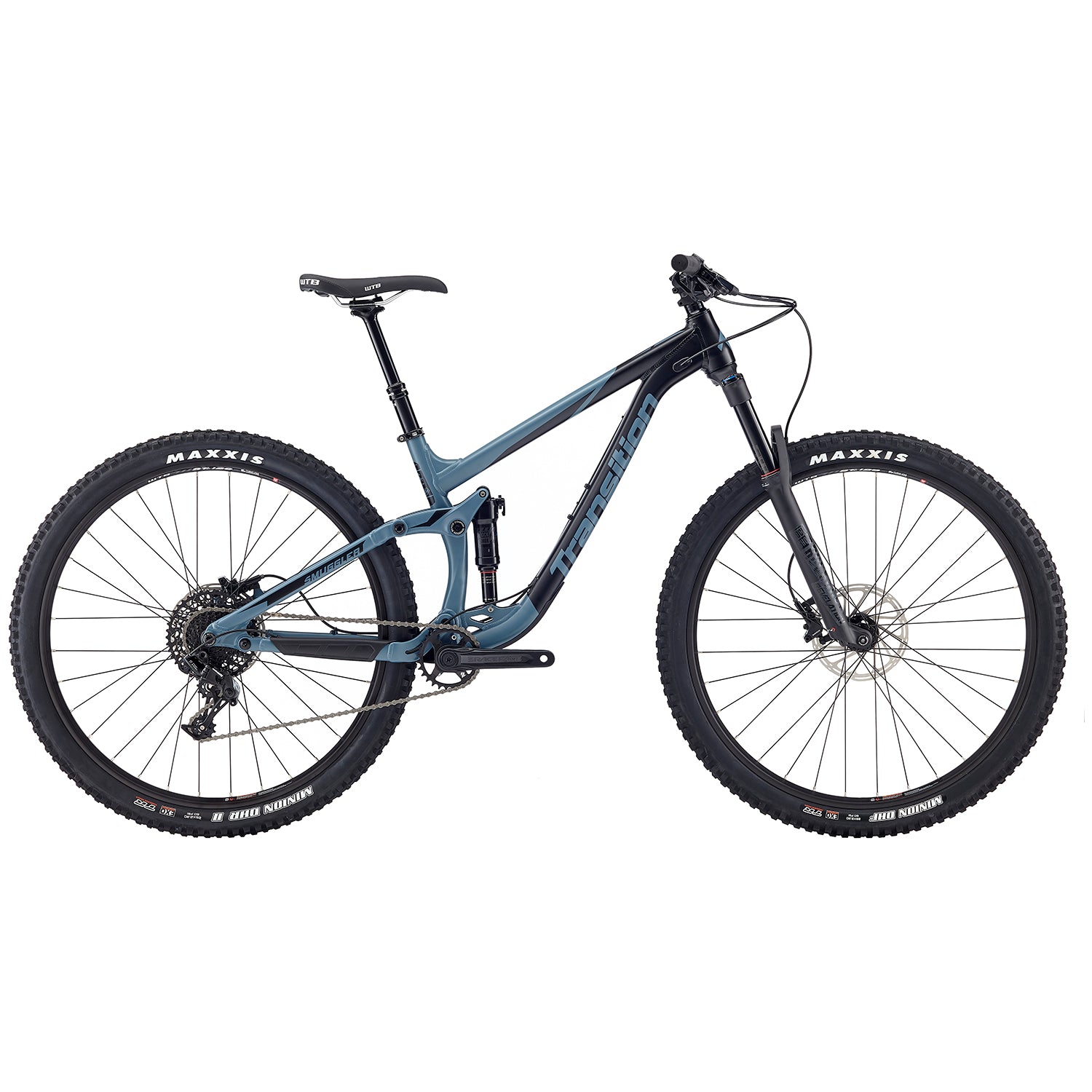

Transition Smuggler NX Complete Mountain Bike 2018
SKU# EB-130964-1001
$2,549.15
$2,999.00
Find in Store
Checking availability...
Not available in store
Order and get 2549 reward points
Earn 2549 points with this product. Join Free
Free shipping on orders over $50
Details
Lowest price guarantee
Details
366 Day Return Policy
DetailsTransition Smuggler NX Complete Mountain Bike 2018
Take life by the bars with the Transition Smuggler NX Complete Mountain Bike. Built to help you fly over a wide variety of terrain, the updated Smuggler and its Speed Balanced Geometry provides riders with a long and stable platform that suits riders of all skill levels. Coupled with ample suspension travel, big boy 29" wheels and the ever-reliable and smooth SRAM NX drivetrain, the Transition Smuggler NX Complete Mountain Bike has serious oomph on the descent while maintaining a powerful and fast uphill ride that no trail or climb can out-gnar.
Product Details
Frame/Shock:
Speed Balanced Geometry: SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with an all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.
GiddyUp 2.0HH Suspension: Building upon the success of Transition's original GiddyUp suspension design, the new GiddyUp 2.0HH system has been refined for the modern two-wheel cowboy delivering a slightly firmer feel for more efficient pedaling, as well as more progressive travel that provides that extra little bit of bottom-out support when needed.

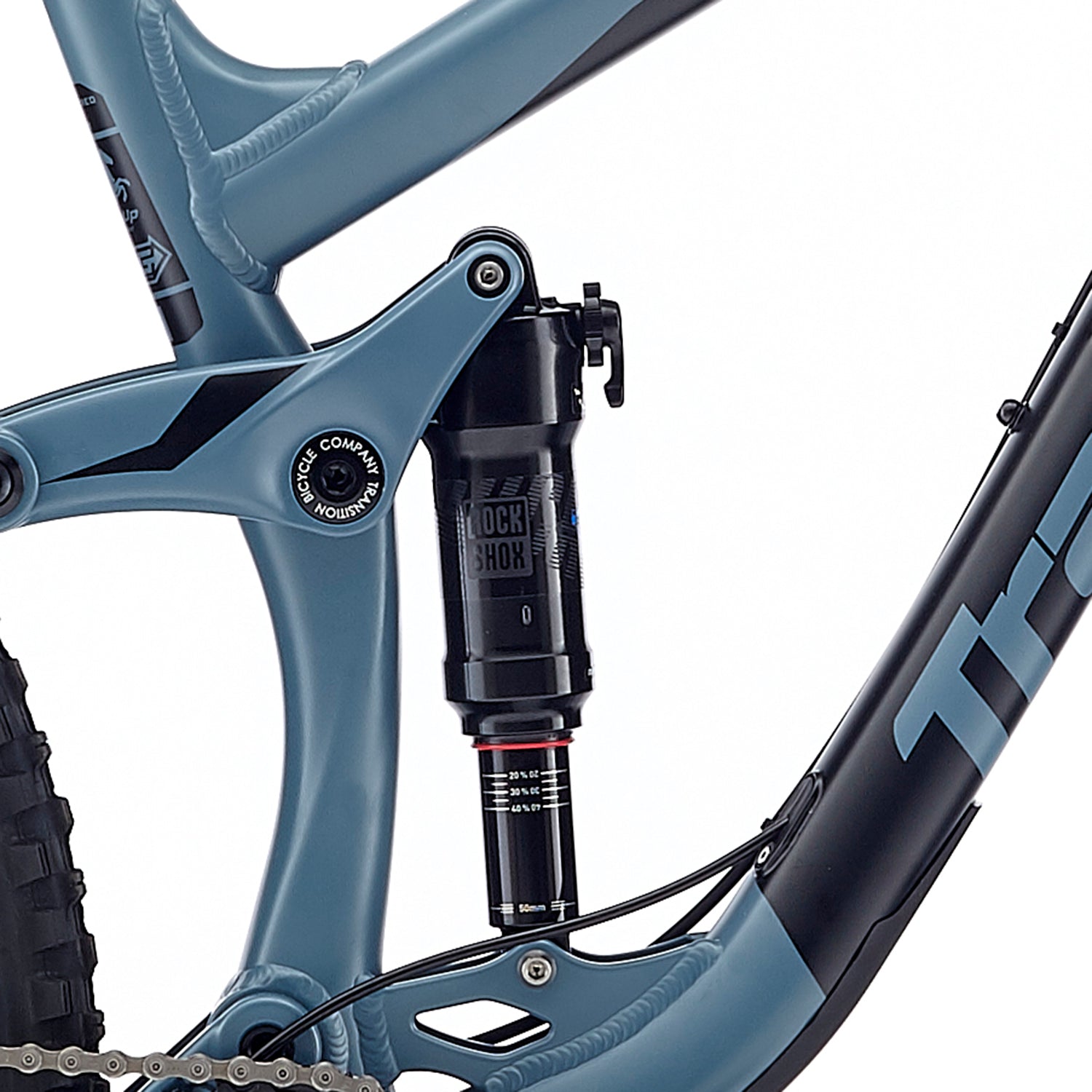

RockShox Deluxe RT: How do you improve on the success of a rear shock that has received critical acclaim for its stellar performance and supple feel? It’s simple. You rewrite the rules, throw existing design constraints out the window and focus solely on the best possible performance solution. RockShox took the proven damping performance of their popular Monarch series and introduced it to a new metric-sized chassis. The result is truly Deluxe, ready to redefine your ride.
Shock Adjustments: 2 Position Compression (Open/Pedal) | External Rebound | Air Spring Pressure
Ultra Stable & Longer Geometry
Taperlock Dropouts
12x148 Boost Rear End
Enduro Max Sealed Bearings
Extra Long Seatpost Insertion
44mm Headtube / Tapered Steer Tube Compatible
73mm Threaded Bottom Bracket
Full Water Bottle Storage
Rattle-Free Cable Routing
Molded Rubber Frame Protection
External Rear Brake Cable Routing
Trunion Shock Mount
Up to 2.8" Tire Clearance
Fork:

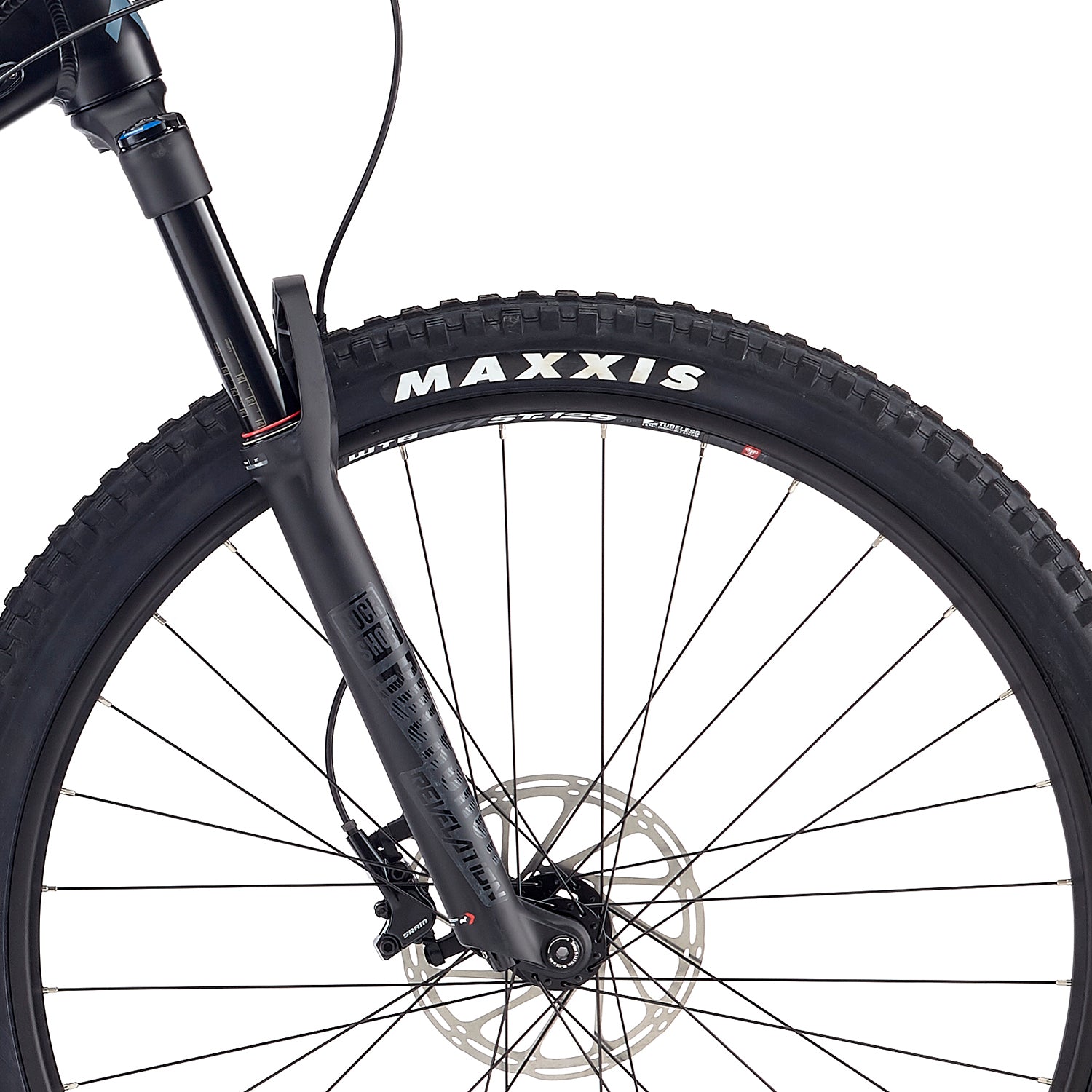

RockShox Revelation RC Solo Air: Revelation has grown. After many years as the original long travel trail fork, the new Revelation is ready to tackle the most demanding trail and enduro rides. The chassis is directly derived from the new Pike, with 35mm upper tubes for unmatched stiffness and to pair with the aggressive look of modern trail and enduro bikes.
Fork Adjustments: Low Speed Compression from Open to Firm | Charger 2 Damper (RC) | External Rebound | Air Spring Pressure
2.5” Maximum Tire Compatibility
Drive Train:

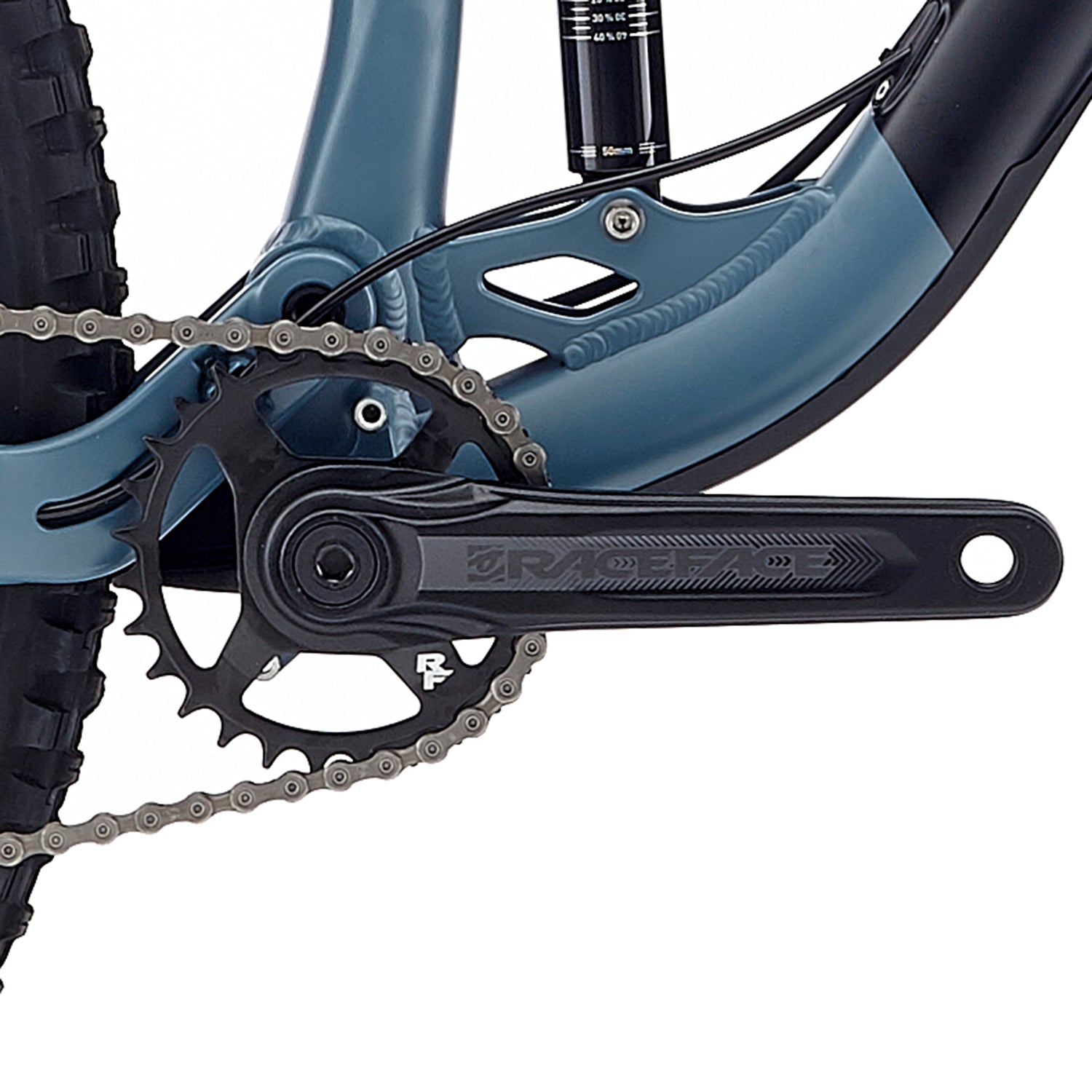

Race Face Æffect Crankset: The Æffect crankset is designed to handle aggressive trail riding at a XC crank weight and attractive pricepoint. Featuring the Cinch System with its interchangeable spider options and trusted 24mm EXI interface spindle, the Æffect is a rock solid crankset for today's modern XC and trail rider.
SRAM NX 11-Speed X-ACTUATION™ Trigger Shifter: The SRAM NX trigger shifter with X-ACTUATION™ technology gives you sharp, dependable shifting. Built for precise and swift shifting across SRAM's wide range 11-speed cassette, the NX trigger shifter brings industry changing technology to everyone.

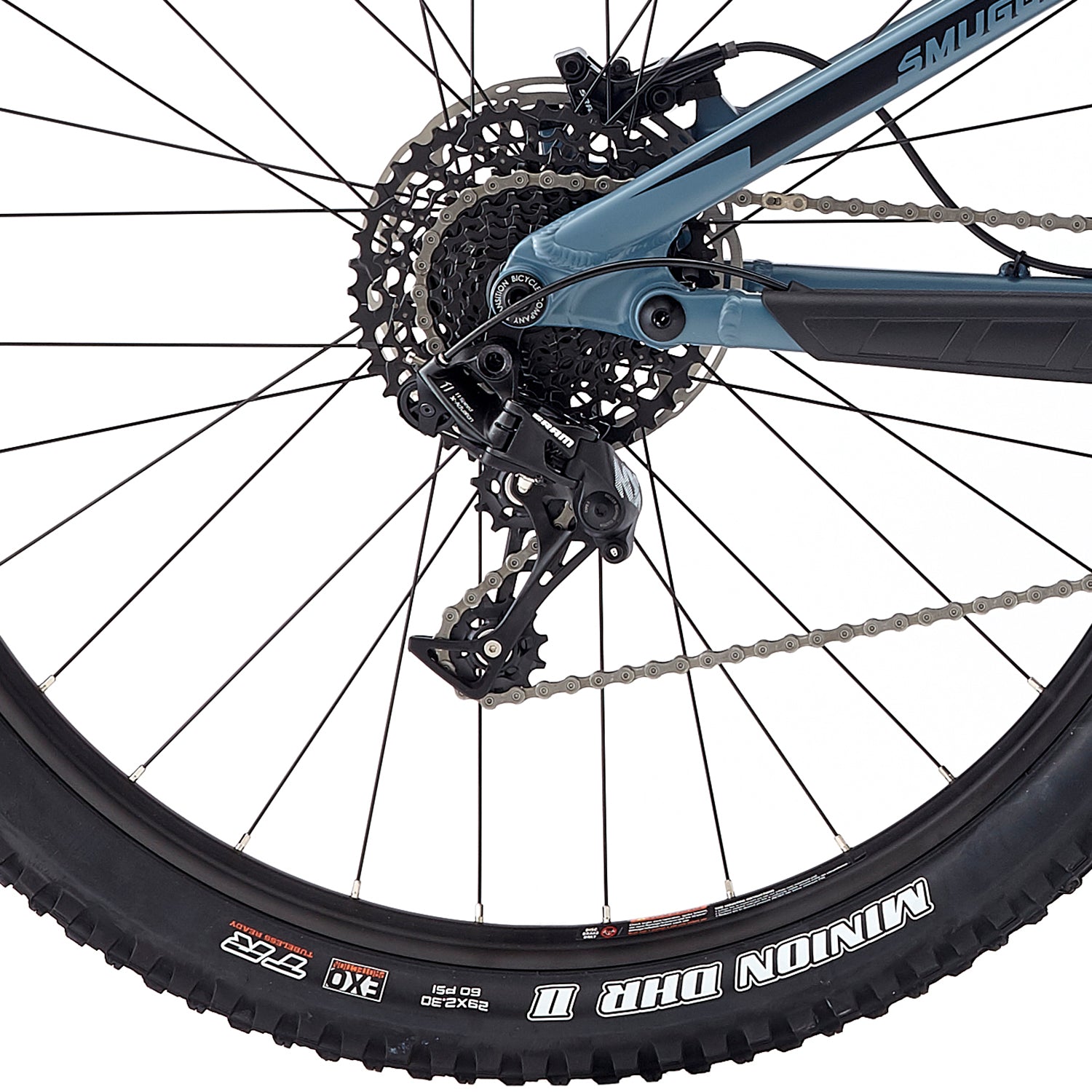

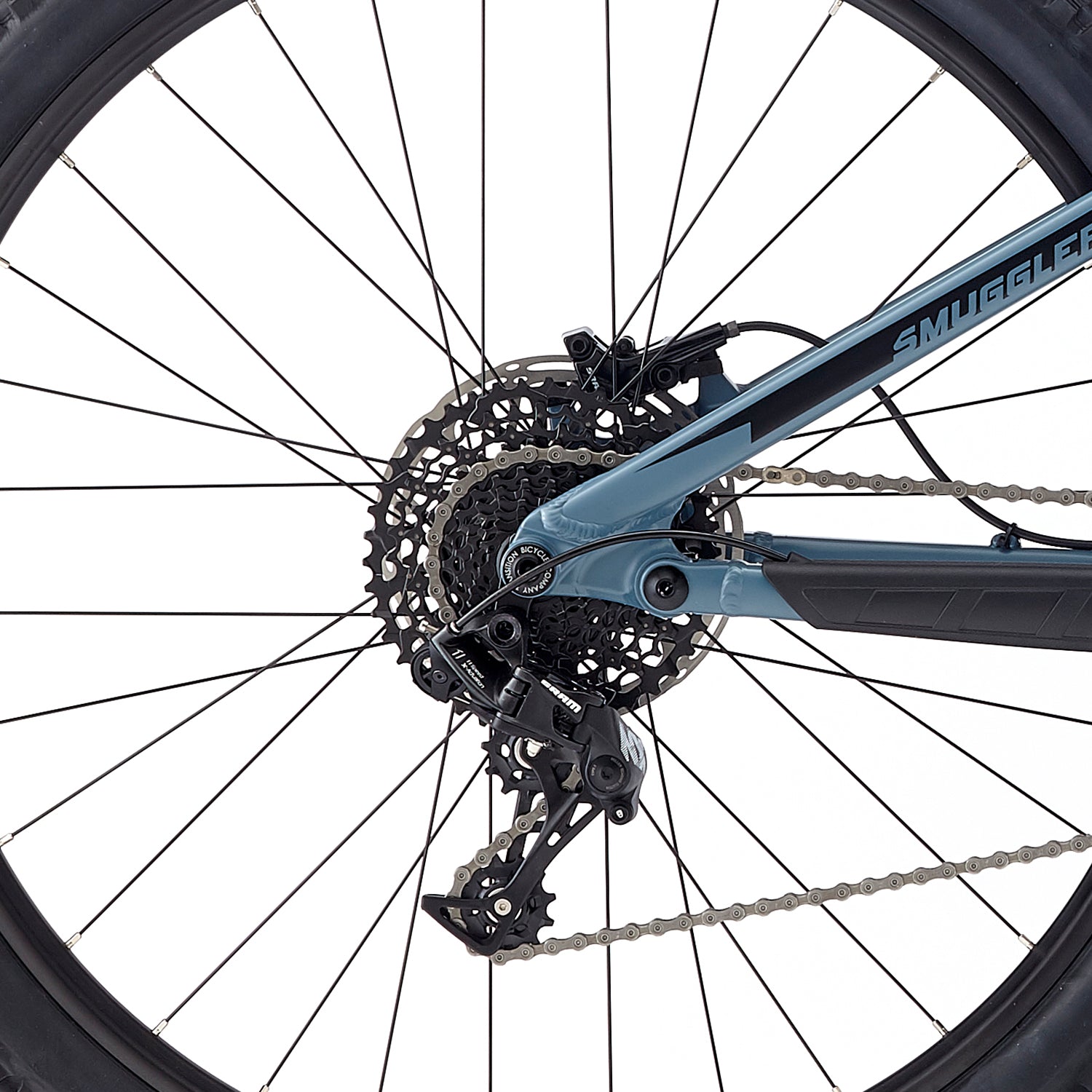

SRAM NX 11-Speed X-HORIZON™ Rear Derailleur: The SRAM NX X-HORIZON™ rear derailleur provides the same smooth, reliable shifting action as XX1—from the larger upper pulley offset to the 12-tooth X-SYNC™ pulley wheels. By eliminating unwanted chain movement, X-HORIZON™ shifts faster, puts an end to ghost shifting and reduces shift force and chain slap. And with CAGE LOCK™ technology, wheel removal and installation are easier than ever.
SRAM PG-1130 Cassette: The PG-1130 cassette is light, durable and equipped with SRAM’s super wide 11-42 gear range that’s a perfect fit for any ride. Personalize your wide range gearing with one of eight available X-SYNC™ chainrings.
SRAM PC-1110 Chain: Designed from a long line of dependable, lightweight chains that are built for toughness. Designed with SRAM’s trusted XX1 geometry, the PC-1110 features solid pin construction, 11-speed PowerLock® and smooth, efficient shifting that you can count on every time out.
Brakes:
SRAM Level T Brakeset: Level T capitalizes on the same trail-taming brake technology that conquered the 2015 World Mountain Bike Championships, to deliver a powerful and consistent XC and trail-optimized brake set that keeps your capital in the bank. This budget-minded, MatchMaker™ compatible brake set provides all the power of its siblings, keeping you in complete control.
SRAM Centerline Rotors: The new Centerline rotor was designed to keep the center of friction consistent throughout rotation, thereby minimizing vibration offering consistent performance and a quiet ride.
Wheelset:
Maxxis Minion DHF EXO Dual | Front Tire: The Minion DHF was designed for the often loose and muddy conditions of aggressive all-mountain terrain. The DHF incorporates ramped knobs for low rolling resistance and channel-cut knobs to increase gripping edges, giving straight-line control and precise cornering.
Maxxis Minion DHR II EXO Dual | Rear Tire: The trail version of the Maxxis Minion DHR II features the same tread pattern as its downhill counterpart, but uses a single-ply casing to reduce weight. With side knobs borrowed from the legendary Minion DHF, but widened to provide more support, the DHR II corners like no other. The center tread features ramped knobs to improve acceleration and sipes to create a smooth transition when leaning the bike. Paddle-like knobs on the center tread dig in under hard braking and help keep the bike under control. Pair it with a Minion DHF up front for the ultimate aggressive trail riding tire combo!
Shipping Information:
Oversize Item: Ships within the continental U.S. for $69. HI and AK shipping available. Please call for details.
Additional Features:
RaceFace Æffect Dropper Seatpost: Introducing the cable actuated, hydraulic cartridge Æffect Dropper Post, a budget friendly but rock solid option for riders wanting to enter the dropper market. A sealed damping system wrapped in 7075 aluminium makes for a lightweight dropper that can take the hits. Internal cable routing compatible for modern frame design.
Specs
Fork Travel:
140mm
Rear Travel:
120mm
Handlebar:
Race Face Chester 35 20mm Rise x 780mm
Weight:
32.5lbs,
14.47kg
Biking Type:
Mountain
Used For:
Trail
Frame Material:
Aluminum Alloy
Gearing:
1 x 11
Stanchion Diameter:
35mm
Shifters:
SRAM NX Eagle
Rear Derailleur:
SRAM NX
Crankset:
Race Face Aeffect, 28t
Cassette:
SRAM PG-1130, 11-42t
Chain:
SRAM PC-1110, 11-Speed
Bottom Bracket:
73mm BSA Threaded
Pedals:
Not Included
Brake Levers:
SRAM Level T
Brake Calipers:
SRAM Level T
Rotors:
SRAM Centerline 180mm
Headset:
FAS No.57E
Bar Tape/Grips:
Velo Single Clamp
Stem:
Race Face Aeffect R (40mm)
Saddle:

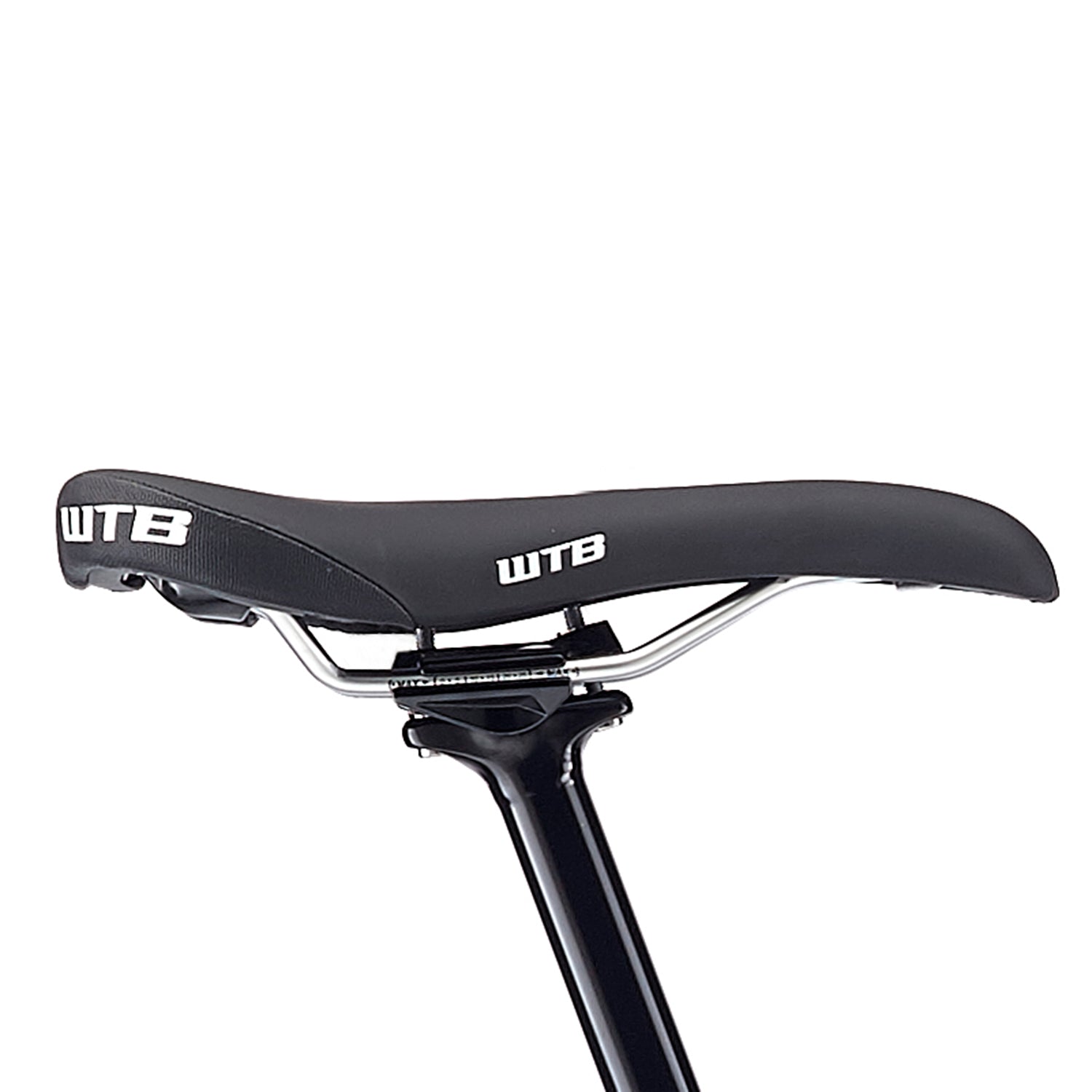

WTB Volt Comp
Seatpost:
Race Face Aeffect Dropper
Hubs:
Novatec D711SB & D462SB
Rims:
WTB STPi29
Front Tire:
Maxxis Minion DHF 2.3" | Dual, EXO
Rear Tire:
Maxxis Minion DHR II 2.3" | Dual, EXO
Warranty:
3 Years
Wheel Size:
29"
