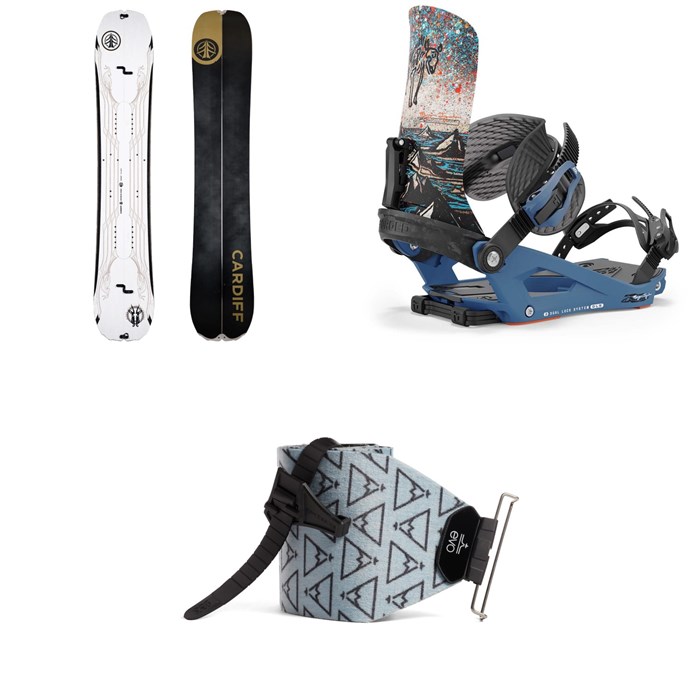

Cardiff Goat Pro Carbon Splitboard + Union Charger Pro Splitboard Bindings + evo x Pomoca Pro Glide Splitboard Skins 2024
Model Info
MEMBERSHIP
Product Info
Cardiff Goat Pro Carbon Splitboard 2024
The Cardiff Goat Pro Carbon Splitboard doesn't pull punches, spit hairs, or make do with compromises - this is the ultimate splitboard for the discerning backcountry rider who is serious about accessing the best lines anywhere. The Goat Pro Carbon Split uses Cardiff's top end TITANcore of Poplar and Paulownia woods, with a vertically laminated Titanal in between for a tremendous balance of lightness and stability and finishes up with both unidirectional and Triax carbon laminates in the layup. For power, precision, and lightweight maneuverability in the backcountry, the Goat Pro Carbon Splitboard cannot be beat.
Product Details
Rocker Type
HALFcamber60 – The Cardiff HALFcamber places camber where it is absolutely necessary and gradual rocker everywhere else. The result is maximum glide, maneuverability and edge control. HALFcamber60 means 60% of the running surface is cambered.
Flex
PROflex (1 Soft - 10 Stiff) – 150cm: 5 // 154cm: 6 // 158cm: 7 // 162cm: 8 // 166cm: 9
Shape
RADIcALSIDECUT™ – Blend of Radial and Progressive sidecuts are used on all CARDIFF boards to give each board a unique character.
PERFECTpivot™ 3.0 – Perfect Pivot matches sidecut to rocker profile for each board to allow maximum performance
Core
TITANcore™ PP – Cardiff Pro Carbon series cores feature poplar-paulownia construction with vertical layers of Titanal in-between. This adds dampening to the precise and responsive carbon.
FULLplank™ – Cardiff splitboard cores run tip to tail with special reinforce-ments in the binding and touring hardware locations.
Laminates
CARBONfiber100™ – A blend of uni-directional and triaxial carbon fiber above and below the core for a super light responsive build.
Sidewalls
SLIDEwall™ – UHMWPE sidewalls for super smooth glide - featured on the Pro Carbon Series decks.
Base
RACEbase™ G – Black graphite infused sintered base for maximized glide and easy repair.
Edges
SHRredges™ 2.0 – Sharpened and beveled 2.0mm Hardened Rockwell 48c steel edges for maximum durability and precise control
Topsheet
ENDUROcap – On both Enduro and Pro Carbon splitboards, Cardiff use a scratch resistant dimpled topsheet for maximum performance and protection
Graphics
Art by Kyson Dana
Additional Features
BIloba™ SP – All CARDIFF splitboards feature a chamfered inner edge of the split ski at both the tip and tail to allow for hood free touring and damage free connection
SPLITtech Optimized – All CARDIFF splitboards are optimized for both soft-boot and hard-boot touring setups. Hard-boots typically have longer sole lengths than soft-boots and hard-boot bindings such as Phantom Alphas sit lower to the surface of the splitboard. This requires a slightly wider deck underfoot, which all of our splitboards feature. Our splitboard cores are reinforced in the connection areas and bindings to handle additional forces from the metal and other hard bindings.
Weight – 150 = 2530 grams, 154 = 2700 grams, 158 = 2840 grams, 162 = 2970 grams, 166 = 3080 grams
Specs
-
Terrain:
All-Mountain, Freeride
More
Terrain
All-Mountain All-mountain snowboards are designed for exploring the whole mountain. They are your go-to for a snowboard that will do anything. They feel at home on groomers, powder, park runs and almost anything in between. The vast majority of snowboarders choose all-mountain boards for their great versatility. If you’re just getting started or unsure of exactly what you need, an all-mountain snowboard is a great choice. Freeride Freeride snowboards are designed for the rider that spends most of the day off groomed runs and in backcountry terrain. They typically have a stiffer flex and are ridden in longer sizes than freestyle snowboards. Freeride snowboards often feature a directional shape that is designed to perform optimally in one direction.
-
Ability Level:
Intermediate-Advanced
More
Ability Level
Intermediate-Advanced Whether you’re a progressing intermediate exploring new runs and terrain, or an accomplished rider seeking new thrills, the majority of skiers and snowboarders fall into this level. Intermediate to advanced skis and snowboards may be somewhat wider or stiffer than beginner-intermediate skis and snowboards, usually with a stronger wood core and sandwich sidewall construction. Intermediate to advanced boots and bindings range from softer flexing freestyle options to stiffer choices built for stability at speed.
-
Rocker Type:
Rocker/Camber/Rocker
More
Rocker Type
Rocker/Camber/Rocker Rocker/Camber/Rocker shapes seek to give you both hard-carving edgehold on firm snow from camber underfoot with enhanced turnability and float in powder from the rockered tip and tail. This profile is increasingly popular for freeride boards designed primarily for soft snow.
- Shape: Directional
-
Flex Rating:
Stiff
More
Flex Rating
Stiff The amount a snowboard flexes varies significantly between boards. Snowboard flex ratings are not necessarily standardized across manufacturers, so the flex may vary from brand to brand. Many manufacturers will give a number rating ranging from 1-10, 1 being softest and 10 being stiffest. Here at evo we have standardized the manufacturers' number ratings to a feel rating ranging from soft to very stiff. Generally you will find flex ratings of 1-2 as soft, 3-5 as medium, 6-8 as stiff, and 9-10 as very stiff. Flex ratings and feel may ultimately vary from snowboard to snowboard.
- Core/Laminates: Carbon, Metal, Wood
- Warranty: 2 Years
| Size (cm) | 150 | 154 | 156 | 158 | 162 | 166 |
|---|---|---|---|---|---|---|
| Effective Edge (mm) | 1150 | 1170 | 1190 | 1220 | 1260 | |
| Tip Width (mm) | 286.3 | 291.5 | 296.3 | 300.6 | 306 | |
| Waist Width (mm) | 254 | 258 | 262 | 265 | 270 | |
| Tail Width (mm) | 276.4 | 280.9 | 285.6 | 289.9 | 295 | |
| Sidecut Radius (m) | 10.6 | 10.8 | 10.5 | 11 | 11.5 | |
| Stance Setback (mm) | 15 | 15 | 17 | 17 | 17 | |
| Width | Regular | Mid-Wide | Mid-Wide | Mid-Wide | Wide |
Union Charger Pro Splitboard Bindings 2024
When it comes to splitboarding, the weak link is usually your bindings. That all ends with the Union Charger Pro Splitboard Bindings. Engineered with an innovative dual lock system similar to the toepiece found on tech ski bindings, this pinless design allows for faster, easier transitions from the skin track to the downhill. The Charger Pro is upgraded with lighter Forged Carbon heelcups and stiffer EXP4 Duraflex ST highbacks for advanced riders seeking the best in both uphill and downhill performance.
Product Details
Tour Mode
Charger Pinless Dual Lock System – With zero room for a pin a in the center of the disk, the Charger split disk connection is now stronger than ever. A small notch in the rear split disk allows for the Chargers easy to use lever to lock you into place.
Ride Mode
Ride Mode – With zero room for a pin a in the center of the disk, the Charger split disk connection is now stronger than ever. A small notch in the rear split disk allows for the Chargers easy to use lever to lock you into place.
Flex Rating – 8/10
Baseplate
SP3 Duraflex CB – This carbon-injected base is stiff and distributes 100% of the energy from edge to edge.
Forged Carbon Heelcup – Lightweight, responsive, and made in Italy, Forged Carbon heelcups are 45% lighter than standard Extruded Aluminum heelcups and still just as bombproof. Backed by Union’s lifetime warranty guarantee.
Straps
Exoframe 5.0 Ankle Strap – Rapid response, trusted by professional snowboarders.
TS 4.0 Toe Strap with Pin – Multi-positional options and thermoplastic anti-slip material keeps you locked in and on point.
Tool-Less Adjustability
Buckles
Magnesium S1 with Aluminum Base
Grade 8.8 Steel Hardware
Highback
EXP4 Duraflex ST – Designed for longer tours and bigger backcountry lines. The EXP4 highback features 15% more fiberglass than the standard EXP3. This stiffer asymmetrical highback shape offers more support on long traverses and quicker edge to edge power for the ride down.
Compatibility
Fits Standard Splitboard (Voile) Insert Pattern
Additional Features
In the Box – Mounting hardware, Charger split disk w/ magnesium adapter plates, quiver disk w/ magnesium adapter plates, touring brackets, and splitboard strap.
Non-Stick EVA Disk Cover
Integrated Climbing Bar
Specs
-
Ability Level:
Advanced-Expert
More
Ability Level
Advanced-Expert Whether you charge the steepest lines, hit the biggest jumps in the park or carve with race-like precision, advanced to expert level skis, snowboards, boots and bindings are for the more aggressive rider. In skis and snowboards, you'll often find layers of metal, carbon or other stringers for rigidity and power, while advanced to expert level boots and bindings are usually on the stiffer side of the spectrum for rebound and precision steering.
- Mounting Pucks: Yes
- Warranty: Limited Lifetime (Baseplates & Heelcups), 1 Year (All Other Parts)
evo x Pomoca Pro Glide Splitboard Skins
If you're looking for the best skins in the business, there's one name that stands out from the pack. That's why we partnered with Pomoca to produce the evo x Pomoca Pro Glide Splitboard Skins. Engineered for versatility across the full range of backcountry conditions, these skins combine Pomoca's super grippy mohair / nylon Climb 2.0 plush with their premium Glide treatment for optimal skin track performance. From mid-Winter pow missions to the Spring corn harvest, the evo x Pomoca Pro Glide Splitboard Skins are ready to rumble.
Product Details
Material
70% Mohair / 30% Nylon
Ever Dry 3.0 DWR – PFC-Free
Tip and Tail Attachments
Ready2climb – The ready2climb skin can be cut to a specific ski in just two minutes without any special tools. The adjustable loop can be fixed to any type of ski.
Features
Grip – Pomoca uses a combination of materials and weaving techniques to combine glide and durability with gripping power. Proper alignment and the fiber attachment systems make Pomoca skins very stable under all conditions and for the life span of the skin.
Glide – This exclusive process gives ski tourers extra glide with less effort. This treatment, applied at the end of the production process and to to entire length of the fiber, makes the skin glide and resist moisture more effectively. Skins with Glide offer an effective process for the entire life of the skin, and unique anti-glopping performance.
Safer Skin Light – Pomoca has succeeded in making it's classic Safer Skin membrane lighter. Thanks to finer layers in the membrane, Safer Skin Light is 12% lighter (150g / m² less). Safer Skin Light makes each pair 60 - 75g lighter, while remaining 100% waterproof and providing slightly less wear resistance.
Includes Pomoca Skin Trim Tool and Storage Bag
Compatibility
Trim to Fit Any Splitboard
Proposition 65 Warning for California Consumers
This product may contain chemicals known to the State of California to cause cancer, or birth defects, or other reproductive harm.
Specs
- Material: Mohair/Nylon
- Compatibility: Trim to Fit
- Warranty: 365 Days + 1
| Size | 145 mm x (M) 158-168 cm | 145 mm x (S) 149-159 cm |
|---|---|---|
| Width (mm) | 145 | 145 |
| Length (cm) | 158 - 168 | 149 - 159 |
