Ace AF1 55 Skateboard Truck

SKU# EB-221861-1001

$47.39

Size: 55
Size Guide
Shipping

Free shipping on orders $50+

Find in Store

Checking availability...

Earn up to 10% back in rewards

Join Free (opens in a new tab)

Free shipping on orders over $50

Details

Lowest price guarantee

Details

366 Day Return Policy

Details

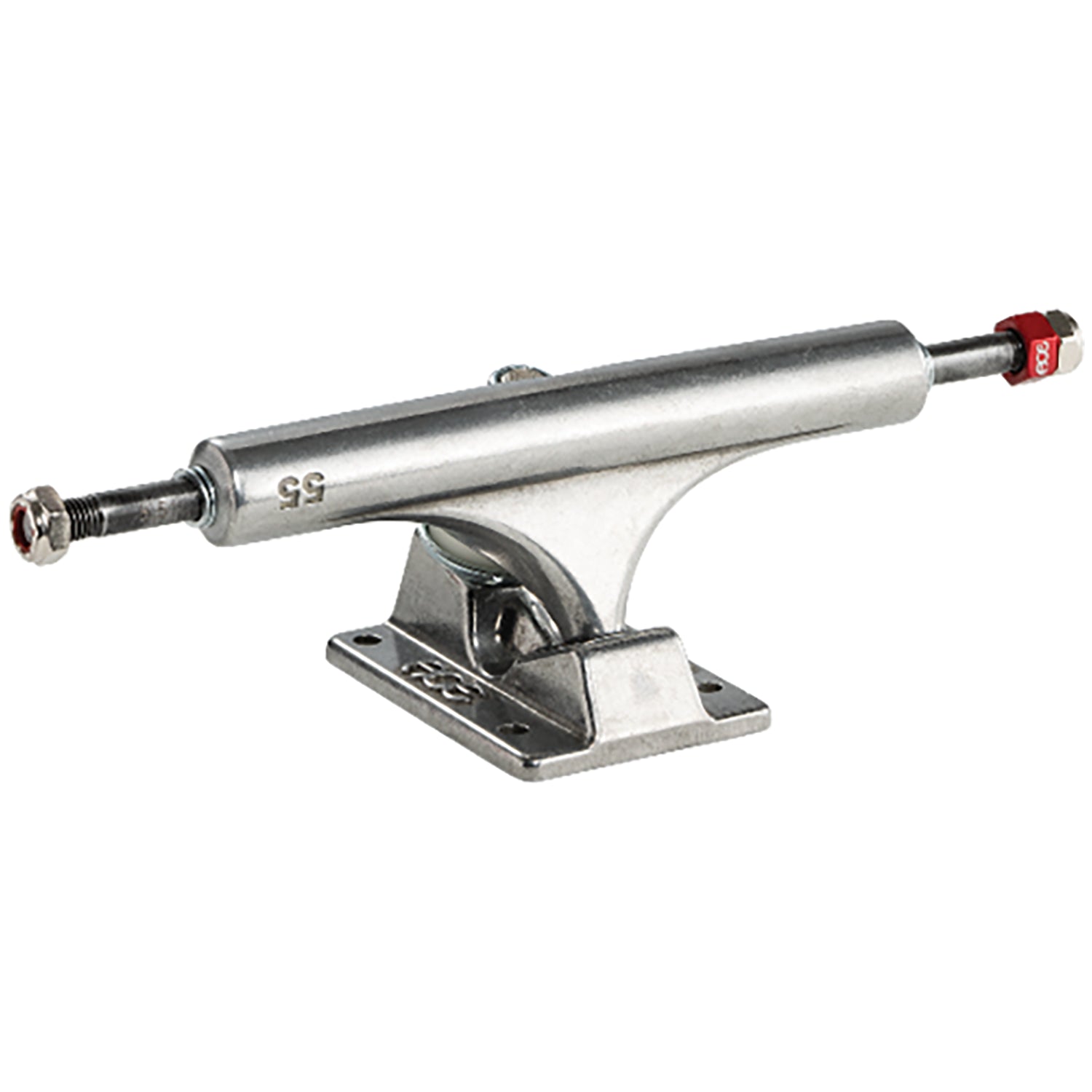

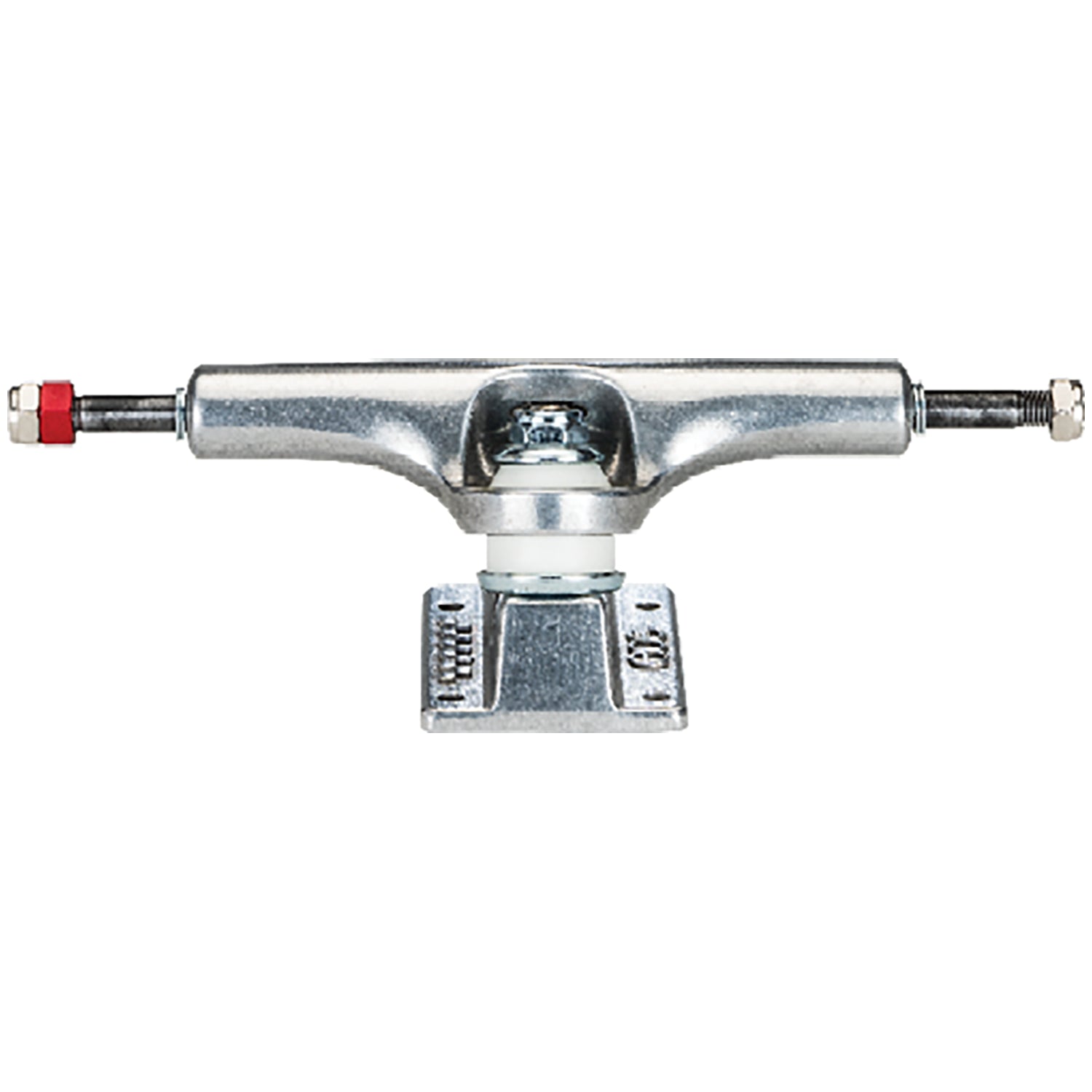

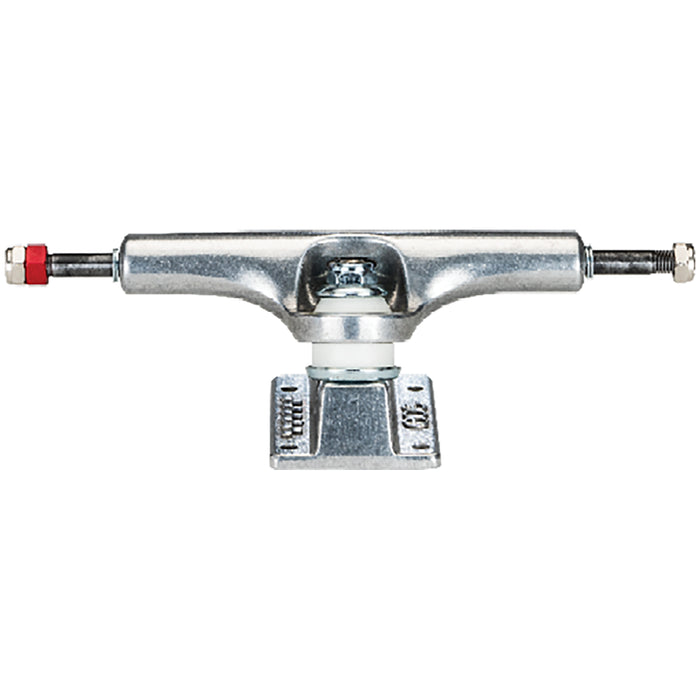

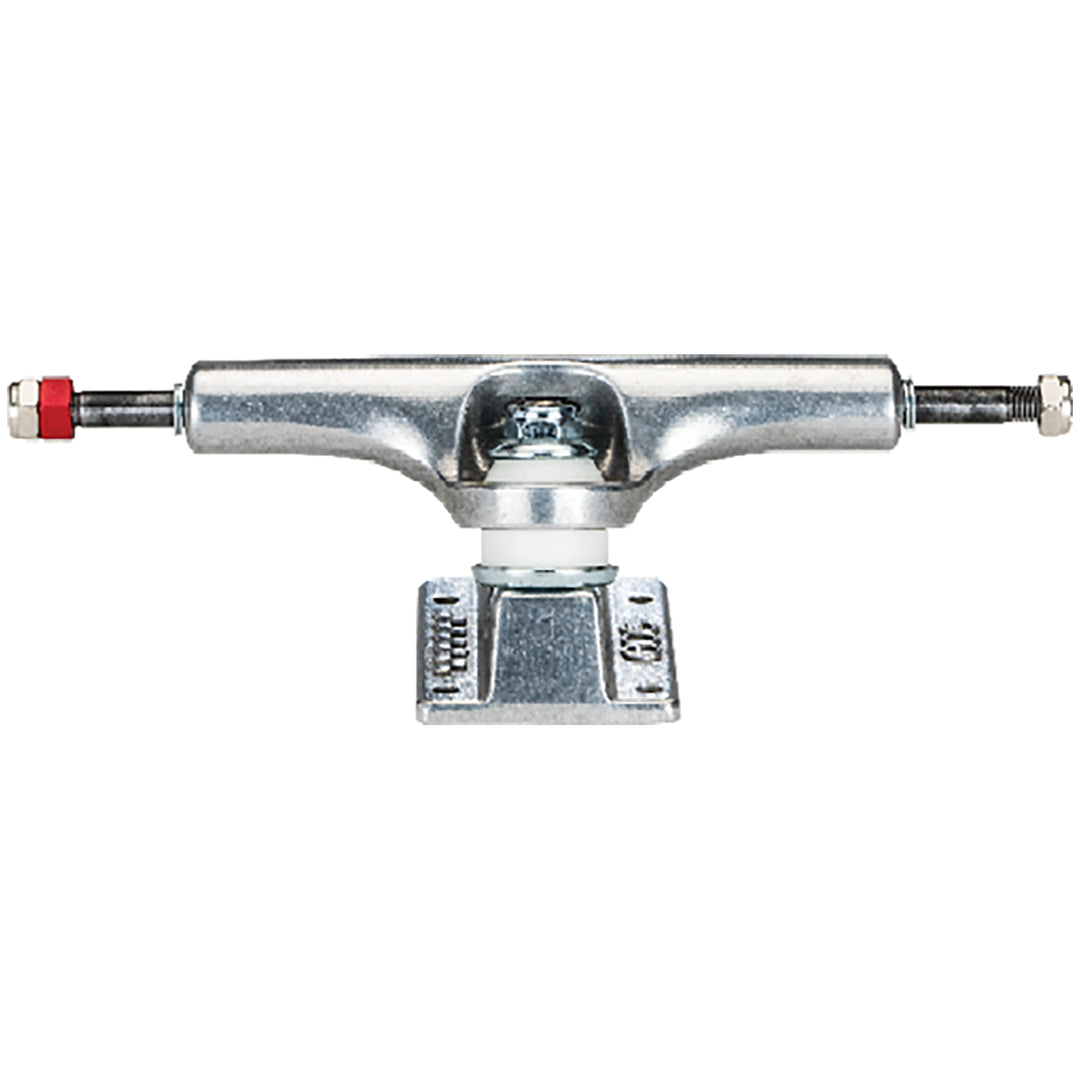

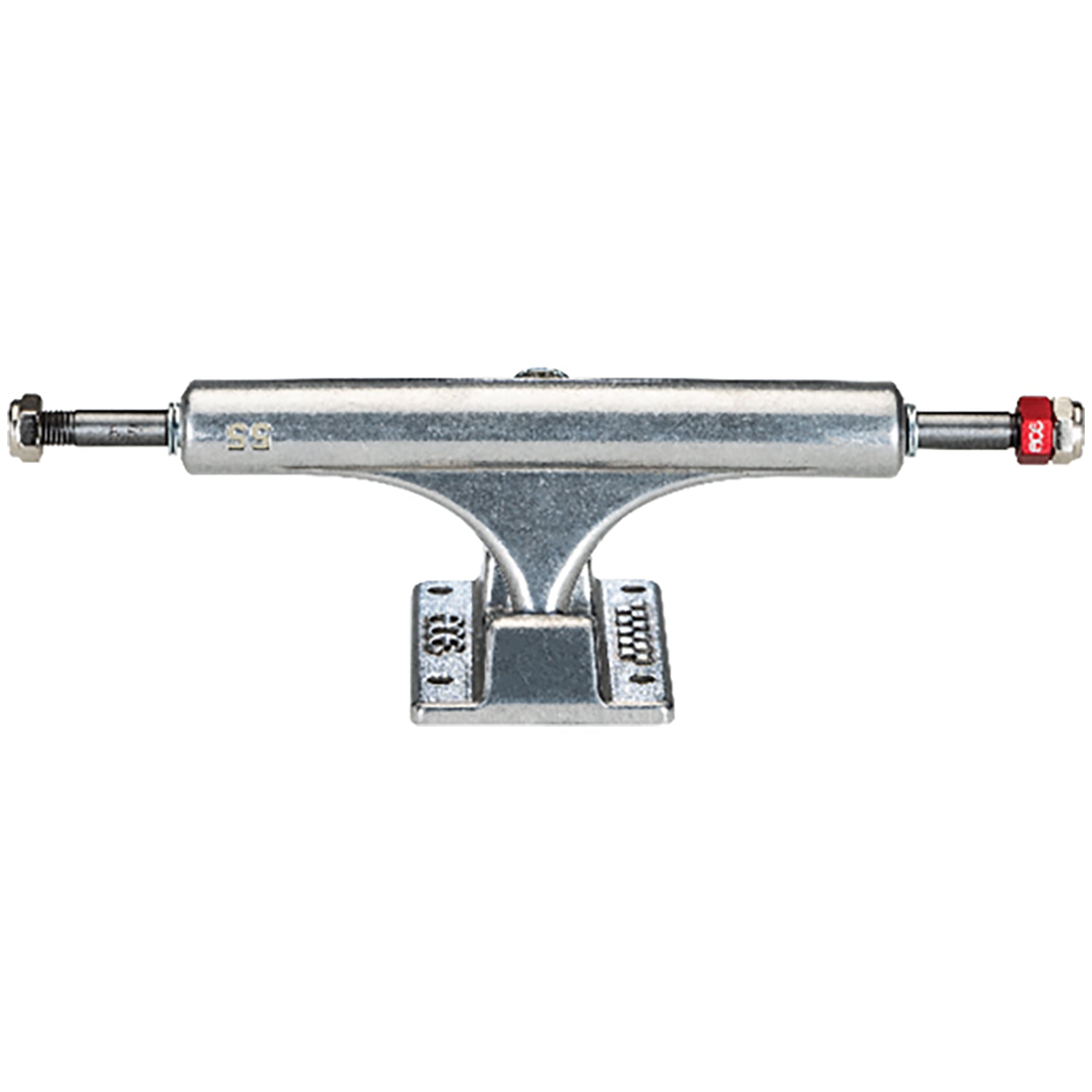

Ace AF1 55 Skateboard Truck

The all-new Ace AF1 55 Skateboard Truck offers refined strength and performance thanks to Ace's proprietary AF1 casting process. Not only does the truck bring a 70% increase in structural integrity, but it also has updated measurements to fit better across decks that are 8.3" to 8.75" wide.

Product Details

Dimensions:
Axle Width: 8.5"
Hanger Width: 5.8"
Truck Height: 2.1"
Features:
High-Quality AA 356.2 Alloy: Manufactured using Ace's own proprietary casting method.
True T6 Heat-Treated Baseplates & Hangers
SAE 4140 Steel Alloy Axles: Oversized to eliminate bearing wobble.
Patent Pending Rethreading Axle Nuts: No more damaged axle ends!
Durable Hand-Poured 96a Urethane Pivot Bushings: For better response.
Refined Suspension: For a cleaner turn.
Top Bushing: 12mm Tall | 91a Hardness
Bottom Bushing: 14mm Tall | 86a Hardness
Machine-Faced Hanger Ends: For precise bearing contact.

Specs

Hanger Width:
149mm
Axle Width:
8.5in
Height:
53mm
Recommended Board Width:
8.3" - 8.75"in
Weight:
397g
