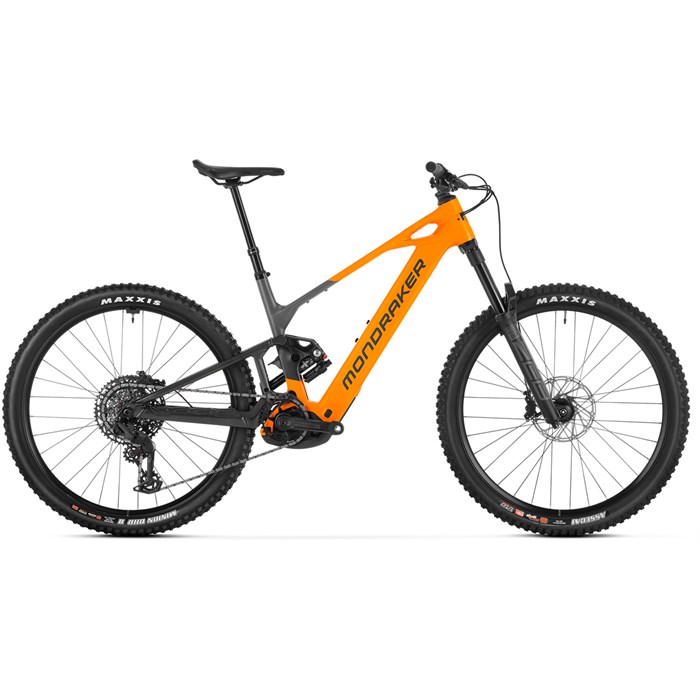

Mondraker Crafty Carbon S E-Mountain Bike 2026
Model Info
Mondraker Crafty Carbon S E-Mountain Bike 2026
MEMBERSHIP
Earn up to 10% back in rewards. Join Free.
EASY RETURNS
Take up to a full year to return your item! See our Return Policy.
Product Info
The Mondraker Crafty Carbon S E-Mountain Bike is built around the Bosch Performamnce Line CX motor and a 800Wh battery — a setup that makes the nastiest climbs feel manageable. The Stealth Air Carbon front triangle pairs with ZERO suspension kinematics and 150mm of travel tuned for both small bump sensitivity and high-speed composure, while a RockShox ZEB up front adds 160mm of pure confidence on the descents. Forward Geometry with a 64.5° head angle and a two-position flip chip lets you dial geometry to terrain, and proportional chainstay lengths across five sizes ensure the bike handles consistently no matter what frame you're on.
Product Details
Key Features
Stealth Air Carbon Frame With Stealth Alloy Rear Triangle
Travel – 160mm Front / 150mm Rear
Wheel Size – 29"
Evolved FORWARD GEOMETRY
ZERO Suspension Platform – ZERO is a virtual pivot suspension system with an exclusive dual link design. The shock floats between the two suspension links and is compressed from both ends, making the rear suspension extremely supple on small bumps and big hit capable. ZERO's main advantages are Zero power loss, Zero pedal kickback, Zero brake jack, and Zero bumps.
Flip Chip – The new design is one degree slacker than the previous generation of Crafty Carbon, making it more stable at speed. As well as the new 64.5° head angle, the frame also comes with a two-position (standard and low) flip chip on the lower shock mount which means you can modify the bottom bracket height by +/- 0.5mm and the seat and head tube angles by +/-0.35° to better suit your style or terrain type.
Removeable Batteries – An integrated, removable battery ensures all the power you need on every ride. And when you get home, simply remove the battery and charge it next to your smartphone.
250Wh Range Extender – All models and frame sizes of the Crafty Carbon offer Powermore range extender compatibility. An extra 250Wh to extend your range or to conquer that last gnarly climb, it’s easily fixed to the main bottle mount on the downtube.
Specs
-
Biking Type:
Mountain
More
Biking Type
Mountain Mountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.
-
Used For:
Enduro
More
Used For
Enduro If you’re looking for maximum performance while flying down heavier trails, an enduro bike is for you. These bikes combine ample suspension travel (typically 150mm+) with descent-focused frame geometry and components that allow for reasonably efficient pedaling.
-
Suspension:
Full Suspension
More
Suspension
Full Suspension Engineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.
- Gearing: 1 x 12
-
Frame Material:
Carbon
More
Frame Material
Carbon Carbon is a composite frame material. Unlike metals, carbon is composed of fibrous strands woven into a grid and bonded with epoxy. Carbon is favored by many for its lightness and stiffness but its complexity in fabrication makes it the most expensive option.
- Water Bottle Mounts: 1
-
Fork:
RockShox ZEB Rush RC
More
Fork
RockShox ZEB Rush RC ZEB Rush features an all-new stiff 38mm chassis designed with the Charger RC damper, DebonAir™ air spring technology and Maxima Plush Fluid. A whole new breed of fork, designed to challenge whatever limits you find.
Fork Adjustments - Air Spring Pressure / Low Speed Compression / Rebound - Stanchion Diameter (mm): 38
- Fork Travel (mm): 160
-
Rear Shock:
Fox Float X Performance
More
Rear Shock
Fox Float X Performance From aggressive trail to enduro, the advanced damping, fade free performance and class-leading durability of Float X makes it the versatile and lightweight choice for All-Mountain riders earning their descents.
Shock Adjustments - Air Spring Pressure / 2-Position Open/Firm Lever / Rebound - Rear Travel (mm): 150
-
Drive Unit:
Bosch Performance Line CX
More
Drive Unit
Bosch Performance Line CX The new Bosch Performance CX is now 48% smaller and 25% lighter compare to the previous generation. More compact but no less powerful, it comes with a maximum power output of 75Nm and 340%. Choose between 5 assist modes or opt for the comfort of the eMTB mode which automatically adapts the assistance like an automatic gearbox does in a car. -
Battery:
Bosch PowerTube 800Wh
More
Battery
Bosch PowerTube 800Wh Thanks to their range, long service life, intelligent battery management system and easy handling, Bosch Power Tube lithium-ion batteries are among the most modern on the market. All those decades of Bosch experience has paid off! -
Shifters:
SRAM Eagle 70 T-Type
More
Shifters
SRAM Eagle 70 T-Type The feel, look and shift quality of the Eagle 70 Shifter
allow you to ride in a whole new way. Optimized cable
pull with a revised lever position for maximum control
and new T-Type actuation, Eagle 70 is able to offer
a higher quality of shift than any previous mechanical
system. -
Rear Derailleur:
SRAM Eagle 70 T-Type, 12-Speed
More
Rear Derailleur
SRAM Eagle 70 T-Type, 12-Speed The Eagle 70 Transmission derailleur is the bedrock
of the best cable-actuated Transmission shift
experience. It features an all-new T-Type cable
actuation ratio to provide the most precise and crisp
shifts every time. Utilizing the same Full Mount design
as its electronic siblings, the Eagle 70 Transmission
derailleur brings strength and dependability to
any bike. The derailleur body features a replaceable
skid plate like GX, X0, and 90 and shares many
of the same rebuildable qualities of those high end derailleurs. - Crankset: e*thirteen Helix eSpec, 160mm
- Cassette: SRAM XS 1270 10-52t
-
Chain:
SRAM Eagle 70 T-Type Flattop, 12-Speed
More
Chain
SRAM Eagle 70 T-Type Flattop, 12-Speed SRAM Eagle 70 T-Type Flattop, 12-Speed - Pedals: Not Included
-
Brake Levers:
SRAM DB8
More
Brake Levers
SRAM DB8 DB8 is SRAM's simple, robust, and powerful brake for riders who prefer to set and forget. The low maintenance Mineral Oil system uses proven lever technologies and features easy adjustment access and superior ergonomic comfort. Code-like power is no surprise, as DB8 utilizes similar caliper architecture and existing brake pads. - Brake Calipers: SRAM DB8
- Rotors: SRAM Centerline, 200mm
- Headset: Acros Custom ZS56/ZS56
- Stem: Onoff S6, 30mm
- Saddle: Ergon SM-10
-
Seatpost:
X-Fusion Manic Dropper
More
Seatpost
X-Fusion Manic Dropper The X-Fusion Manic Dropper elects for a simpler design. Inside you'll find a closed cartridge that is both sealed and designed to be easily removable from the rest of the post. Simple construction aside, the action of this post feels super-dooper smooth, and far silkier than any dropper. Features internal cable routing. - Hubs: WTB Frequenzy Sport Boost
- Rims: WTB Sportterra Tough
- Spokes: WTB Straight Gauge
-
Front Tire:
Maxxis Assegai 2.5" | 3C MaxxGrip, EXO+, TR
More
Front Tire
Maxxis Assegai 2.5" | 3C MaxxGrip, EXO+, TR Greg Minnaar’s signature tire – the Maxxis Assegai – provides tenacious, predictable grip across the entire profile no matter the lean angle. The Assegai can be used front and rear for a surefooted feel or as a front paired with a faster rolling rear tire.- 3C MaxxGrip: The stickiest, slowest rebounding rubber Maxxis offers.
- EXO+: Durable 60 TPI casing, legendary EXO puncture protection in the sidewalls, and a small butyl insert around the bead to protect from pinch flats and help prevent rim damage.
- Tubeless Ready (TR): Tubeless tires allow riders to run lower air pressures for improved traction, lower rolling resistance, and less chance of flatting.
-
Rear Tire:
Maxxis Minion DHR II 2.5" | 3C MaxxTerra, DoubleDown
More
Rear Tire
Maxxis Minion DHR II 2.5" | 3C MaxxTerra, DoubleDown With side knobs borrowed from the legendary Minion DHF, but widened to provide more support, the DHR II corners like no other. The center tread features ramped leading edges to improve acceleration and sipes to create a smooth transition when leaning the bike. Paddle-like knobs on the center tread dig in under hard braking and help keep the bike under control.- 3C MaxxTerra: A triple compound ideal for trail riding in all conditions - offers more traction than 3C MaxxSpeed, yet provides better treadwear and less rolling resistance than 3C MaxxGrip.
- DoubleDown (DD): Two layers of lightweight 120 TPI casing combined with a butyl sidewall insert creates a highly durable tire with more trail feedback than a Downhill casing tire.
- Warranty: Limited Lifetime (Frame)
| Size | S | M | M/L | L | XL |
| Rider Height | 5'3" - 5'6" | 5'5" - 5'10" | 5'8" - 6'1" | 6' - 6'4" | 6'3" - 6'7" |
| Reach (mm) | 445 | 460 | 480 | 500 | 520 |
| Stack (mm) | 638 | 638 | 647 | 656 | 665 |
| Effective Top Tube (mm) | 581 | 596 | 618 | 640 | 662 |
| Seat Tube (mm) | 380 | 410 | 435 | 460 | 490 |
| Head Tube Angle (°) | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| Seat Tube Angle (°) | 77.95 | 77.95 | 77.95 | 77.95 | 77.95 |
| Chainstay Length (mm) | 455 | 455 | 455 | 465 | 465 |
| Bottom Bracket Height (mm) | 350 | 350 | 350 | 350 | 350 |
| Bottom Bracket Drop (mm) | 25 | 25 | 25 | 25 | 25 |
| Head Tube Length (mm) | 120 | 120 | 130 | 140 | 150 |
| Wheelbase (mm) | 1240 | 1255 | 1280 | 1314 | 1338 |
| Wheel Size | 29" | 29" | 29" | 29" | 29" |
