Devinci Ewoc FS SX 12s Complete Mountain Bike - Kids' 2024
Model Info
MEMBERSHIP
Earn up to 10% back in rewards. Learn more. Join Free.
Product Info

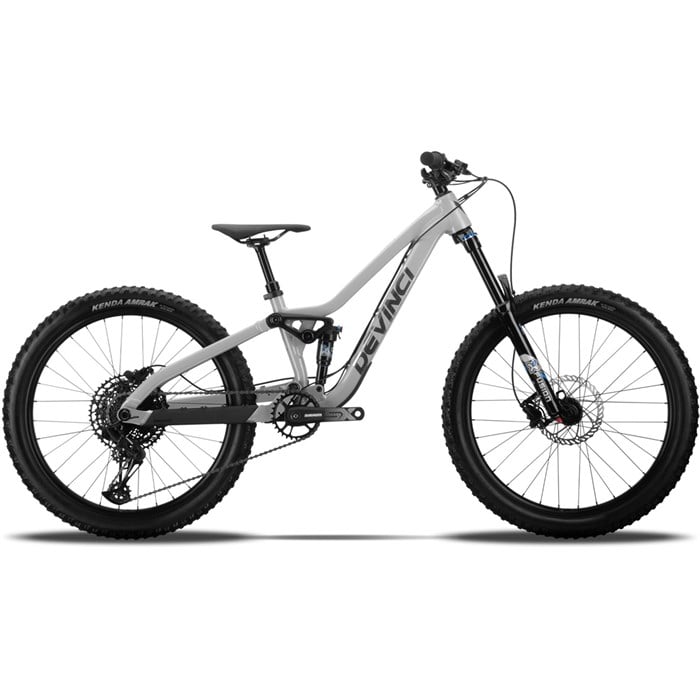

The Devinci Ewoc FS SX 12s Complete Mountain Bike is a fully-kitted bike for growing rippers. Taking all the capabilities of a full sized trail bike, DeVinci packs 125mm of rear travel into this pint-sized package. Specially tuned for lighter riders, it has an ultra-low standover height and is compatible with both 24" and 26" wheels, so you can upgrade with their skills and size.
Product Details
Key Features
Made in Canada Aluminum Frame – Made from 6061-T6 aluminum tubesets for superior durability, incredible stiffness, and a knockout strength-to-weight ratio exclusive to Devinci bikes.
Travel – 140 mm Front / 125 mm Rear
Wheel Size – 24"
Compatible with 24'' and 26'' Wheels – Offers the possibility to mount 26'' wheels to let the bike grow with the rider.
Lightweight Rider Suspension Kinematics – Lightweight riders usually mean low air pressure in the rear shock, and rear shocks with low pressure usually don’t respond as well as they should. Can’t get the rebound fast enough, provide minimal support, and lack sensitivity. The Ewoc FS features a suspension kinematic and a rear shock that are specifically tuned for lightweight riders. This means that the rear suspension will be active and perform efficiently even with low shock pressures.
Split Pivot – Separates acceleration forces from braking forces for a buttery smooth ride with hyperactive small bump compliance, plus increased traction and podium-crushing pedal stroke efficiency.
Super Low Standover Height – Plenty of clearance for short legs.
Specs
-
Biking Type:
Mountain
More
Biking Type
Mountain Mountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.
-
Used For:
Trail
More
Used For
Trail Trail bikes are the quintessential “mountain bikes.” If you’re heading into the woods expecting to do it all on two wheels – climbing, technical sections, AND fun descents – you’re looking for a trail bike.
-
Suspension:
Full Suspension
More
Suspension
Full Suspension Engineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.
-
Frame Material:
Aluminum Alloy
More
Frame Material
Aluminum Alloy Aluminum is the second lightest material per cubic inch, after carbon, but it is significantly more affordable. It offers versatility, strength, and durability that works well in all trail disciplines.
- Gearing: 1 x 12
- Water Bottle Mounts: 1
-
Fork:
X-Fusion Velvet RLC
More
Fork
X-Fusion Velvet RLC With a lightweight custom tune and the ability to upgrade to 26" wheels as a rider grows, this fork is big time tech in a smaller package.
Fork Adjustments - Air Spring Pressure, Compression to Lockout, Rebound Adjust - Stanchion Diameter (mm): 32
- Fork Travel (mm): 140
-
Rear Shock:
X-Fusion 02 Pro R
More
Rear Shock
X-Fusion 02 Pro R The 02 series line of shocks see a host of changes, including a new air canister design which adds 15% more air for smoother ramp up, increased tuning options with three different size air-can volume spacers, and larger, more ergonomic knobs to allow for easier access to the adjustments. - Rear Travel (mm): 125
-
Shifters:
SRAM SX Eagle
More
Shifters
SRAM SX Eagle Compatible with ALL other SRAM Eagle™ drivetrains, this shift lever keeps the promise of a simple shift. SX Eagle™ means easy, intuitive shifting every time for every rider. -
Rear Derailleur:
SRAM SX Eagle, 12-Speed
More
Rear Derailleur
SRAM SX Eagle, 12-Speed This new SX Eagle derailleur is your entry point to the SRAM Eagle Ecosystem. Sharing many features with the rest of the Eagle Ecosystem like the proven SRAM 1x-specific X-HORIZON™ body design, it can accommodate both 11-50T and 10-50T cassettes. The SX Eagle is cross compatible with much of the Eagle Ecosystem, making it easy to personalize and upgrading your ride when you are ready. -
Crankset:
SRAM SX Eagle, 30t
More
Crankset
SRAM SX Eagle, 30t Multiple price-point options to allow you to hit the group price you need to build a better bike. Same chain retention performance as seen in all of the higher-level Eagle drivetrain cranks.
FEATURES- All new fully featured Eagle crankset. Now offering more Eagle™ options than ever before.
- Steel Eagle™ direct mount ring — as seen on NX Eagle™.
- For Powerspline cranks, use 118/73 Powerspline Bottom Brackets.
- Cassette: SRAM PG1210 Eagle, 11-50t
- Chain: SRAM SX Eagle, 12-Speed
- Bottom Bracket: Truvativ Power Spline
- Pedals: Not Included
- Brake Levers: Promax
- Brake Calipers: Promax Disc
- Rotors: Promax Stainless 180mm
- Headset: FSA Orbit | 1.5E | Zero Stack
- Stem: V2 Comp 31.8 | 35mm ext | 0 degree
- Saddle: Devinci
- Seatpost: Tranzx Dropper 31.6mm 1X-Lever
- Hubs: Front Hub: Formula | DC-71 | Sealed | 6bolts TA 15x100mm / Rear Hub: Formula | DHT-148 | 6 Bolts TA 12x148 BOOST
- Rims: V2 Comp | 27mm inner
- Spokes: Stainless 14G
- Tires: Kenda Amrak K1247 24x2.4
- Warranty: Limited Lifetime (Frame), 1 Year (Components)
| Size | O/S |
|---|---|
| Rider Height | 4'4" - 4'10" |
| Reach (mm) | 375 |
| Stack (mm) | 544 |
| Effective Top Tube (mm) | 511 |
| Seat Tube (mm) | 310 |
| Head Tube Angle (°) | 64.5 |
| Seat Tube Angle (°) | 76.0 |
| Chainstay Length (mm) | 419 |
| Bottom Bracket Height (mm) | 310 |
| Head Tube Length (mm) | 95 |
| Wheelbase (mm) | 1097 |
| Standover Height (mm) | 633 |
| Complete Weight (lbs) | 31.97 |
| Complete Weight (kg) | 14.50 |
| Wheel Size | 24" |
